3Monkeez 112mm Round Drop-in Floor Waste and Arrestor System – Precision Drainage for 100mm Pipework
The 3Monkeez 112mm round floor waste system is a premium, safety-focused solution designed for seamless "drop-in" installation into 100mm DWV or HDPE pipework. Whether you require a standard grate or a high-performance Waste Arrestor for trade waste compliance, this modular system provides maximum durability and hygienic performance.
Configuration Options:
-

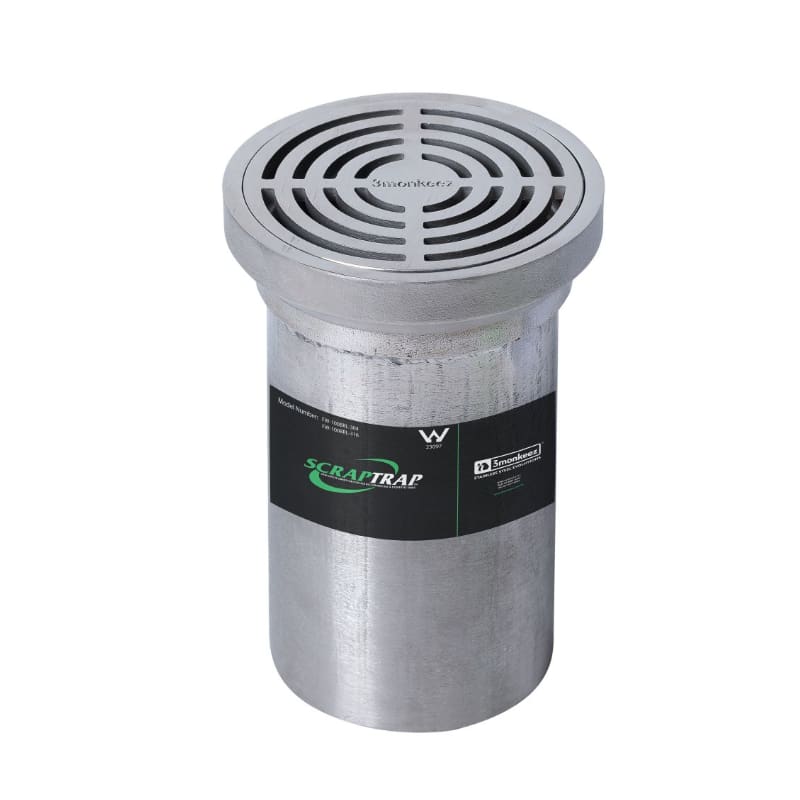

Complete Kit: A total drainage solution including the 112mm Round Grate, a fixed secondary strainer, and a Removable Stainless Steel Basket to intercept solids and prevent blockages.
-

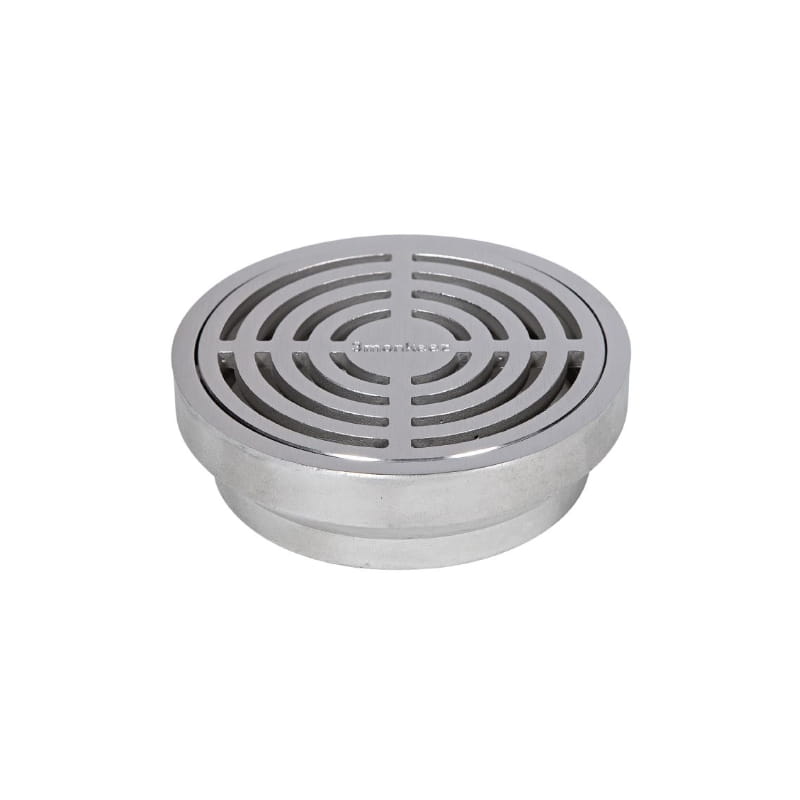

Grate Only: The safety-compliant Heel Proof 112mm round removable grate, available in both 304 and 316 grades.
-
Removable Basket Only: A Grade 304 replacement stainless steel basket designed specifically for the FW-100BRL arrestor series.
Material Grade Selection: For standard commercial applications, Grade 304 Stainless Steel offers exceptional performance. For coastal projects, facilities exposed to high salinity, or areas using aggressive cleaning chemicals, we highly recommend Grade 316 Marine Grade Stainless Steel for its superior resistance to pitting and surface corrosion.
⬇️ Download Data Sheet (PDF) ⬇️ Installation Guide (PDF)
Key Features & Benefits:
-
Safe & Compliant: Heel Proof grate design ensures safety for pedestrians in commercial kitchens, public amenities, and laundries.
-
Solid Interception: The arrestor system features Two-Stage Filtration (Removable Basket + Secondary Strainer) to protect your plumbing infrastructure.
-
Easy Maintenance: The drop-in design and removable components allow for quick cleaning and trade waste management.
-
Versatile Fit: Specifically engineered to suit standard 100mm pipes with a precision 112mm diameter face.
Application & Compatibility:
- Suitable for 100mm DWV and HDPE pipe systems.
-
316 Grade Highly Recommended for: Coastal facilities, marine environments, laboratories, and high-chemical washdown areas.
- The Complete Kit (316 Grade) includes a 316 Stainless Steel grate paired with a durable 304 Stainless Steel basket.
| Technical Specifications |
|
| Parameter |
Detail |
| Brand / Model |
3Monkeez / FW-100RL / FW-100BRL
|
| Grate Diameter |
112mm Round |
| Pipe Suitability |
100mm (Drop-in Design) |
| Grate Design |
Heel Proof (Safety Compliant) |
| Filtration |
Removable Basket & Secondary Strainer (Arrestor version) |
| Material Grade |
304 or 316 Stainless Steel Options |
Manufacturer's Warranty Information
This 3Monkeez drainage system is backed by a robust commercial warranty, typically offering 12 months coverage on defects in materials and workmanship. Please refer to official 3Monkeez warranty terms for full details.
