3Monkeez 200mm Round Vinyl Floor Waste System – High-Capacity Drainage for 150mm Pipework
The 3Monkeez 200mm vinyl floor waste series is a heavy-duty drainage solution specifically designed for large-scale commercial environments. Engineered to fit 150mm pipework, this system ensures a professional, watertight seal with vinyl floor coverings while providing superior flow capacity and safety.
Available Configurations:
-

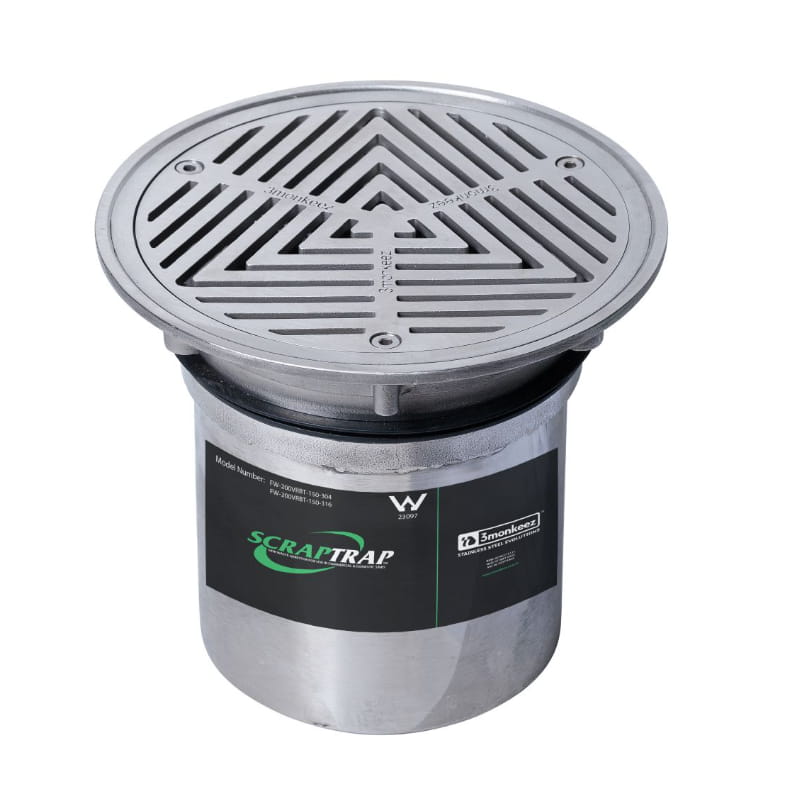

Floor Waste Arrestor (Complete Kit): The comprehensive trade waste solution. Includes the 200mm Vinyl Grate, clamping ring, secondary strainer, and a Removable Stainless Steel Basket (FW-200VBRT-150) to catch large debris and prevent 150mm line blockages.
-

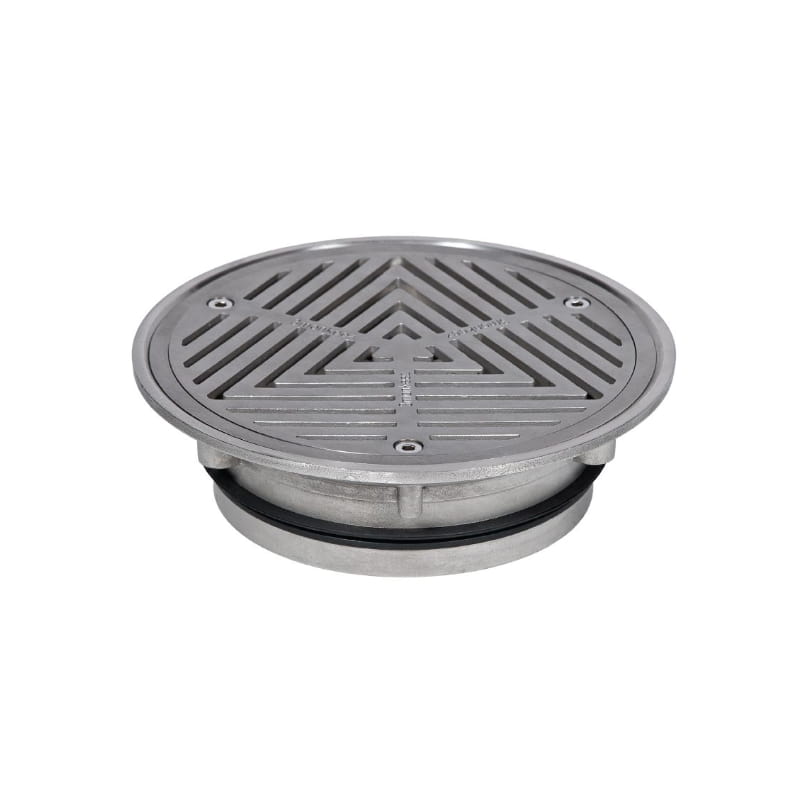

Standard Floor Waste: A high-capacity 200mm round vinyl floor waste assembly (FW-200VRT-150) featuring the Heel Proof safety grate and secure clamping flange.
-

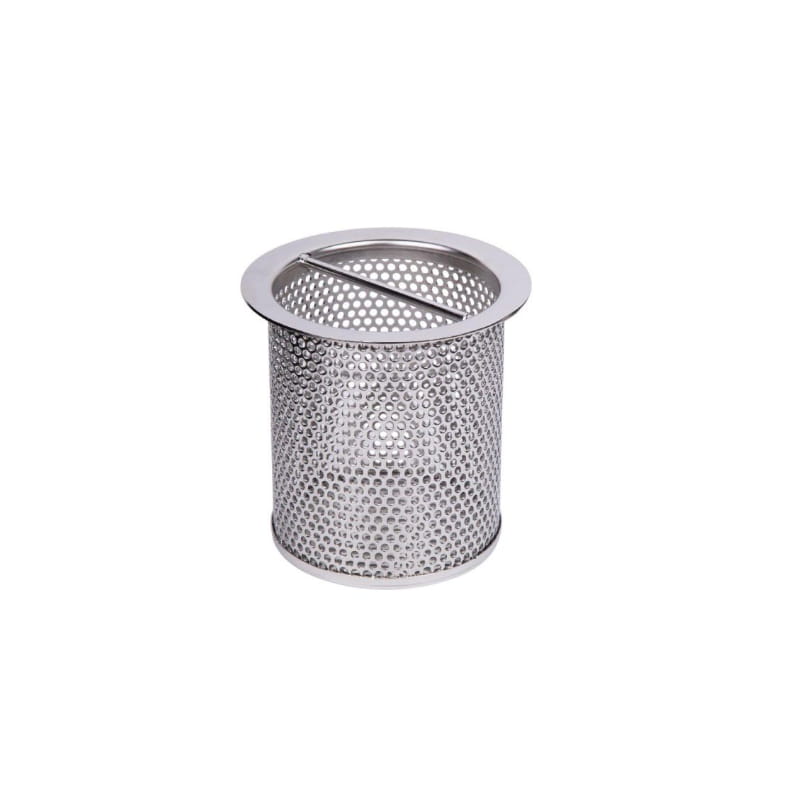

Replacement Parts: Separate 304 Grade stainless steel baskets are available for maintenance and site upgrades.
Material Grade Selection: Grade 304 Stainless Steel is the standard for commercial kitchens and laundries. For environments exposed to heavy chemicals or coastal conditions, we recommend Grade 316 Marine Grade for its maximum resistance to pitting and corrosion.
⬇️ Download Arrestor Data Sheet (PDF) ⬇️ Installation Guide (PDF)
Key Features & Benefits:
-
High Flow Capacity: Specifically designed to suit larger 150mm DWV or HDPE pipe systems.
-
Heel-Proof Grate: Compliant safety design protects pedestrians and ensures smooth equipment movement over the drain.
-
Watertight Vinyl Clamp: The heavy-duty flange locks vinyl floor sheeting firmly in place to prevent water damage to the subfloor.
-
Trade Waste Ready: The arrestor model provides Two-Stage Filtration (Removable Basket + Secondary Strainer) for easy solid waste management.
| Technical Specifications |
|
| Parameter |
Detail |
| Brand / Model |
3Monkeez / FW-200VRT-150 / FW-200VRBT-150
|
| Grate Diameter |
200mm Round |
| Floor Type Suitability |
Vinyl / Sheet Flooring |
| Pipe Suitability |
150mm (DWV or HDPE) |
| Grate Design |
Heel Proof (Safety Compliant) |
| Filtration Options |
Standard Grate or Removable Basket + Secondary Strainer |
| Material Grade |
304 or 316 Stainless Steel Options |
Manufacturer's Warranty Information
This 3Monkeez drainage system is backed by a robust commercial warranty, typically offering 12 months coverage on defects in materials and workmanship. Please refer to official 3Monkeez warranty terms for full details.
