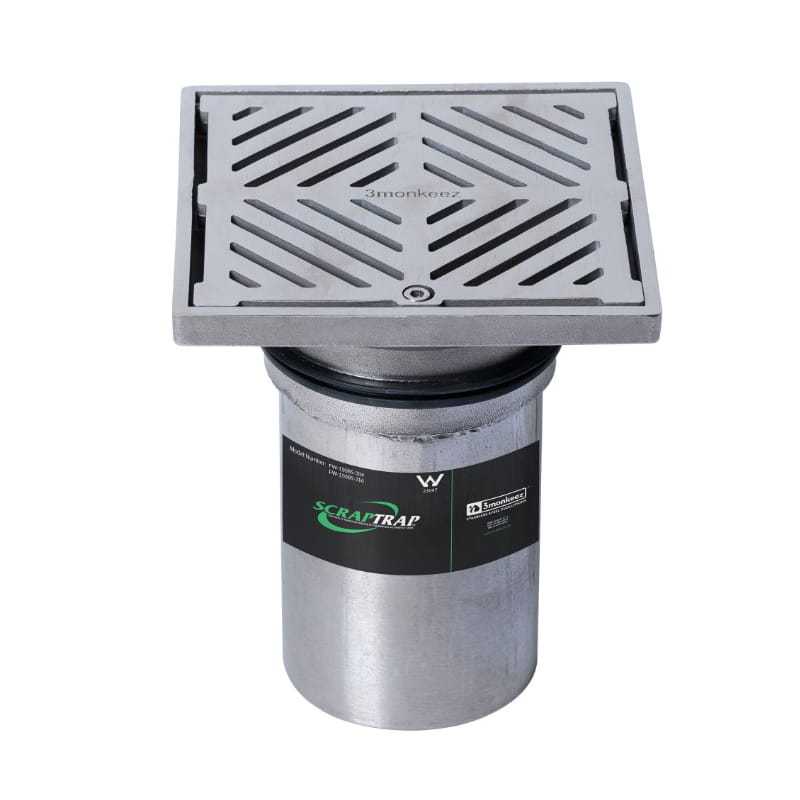

3Monkeez FW-150BS-316 150mm Square Floor Waste Arrestor (100mm Pipe) (Heel Proof) - 316 Stainless Steel
Alternative Product Option
For environments with standard corrosion requirements, the highly durable 304 Grade Stainless Steel version of this floor waste is also available.
Please click here to view the 3Monkeez FW-150BS-304 150mm Square Floor Waste in 304 Stainless Steel.
The 3Monkeez FW-150BS-316 150mm Square Floor Waste Arrestor is the highest specification drainage solution for commercial and industrial environments exposed to harsh conditions. Designed for 100mm pipework and integrating with square floor grate outlets, this unit is essential for facilities where maximum corrosion resistance is required, such as coastal areas, laboratories, and high-salinity processing zones.
Constructed from premium Grade 316 Marine Grade Stainless Steel, this floor waste provides exceptional durability and superior resistance to chlorides and pitting corrosion in the most aggressive wet and hygienic environments. The unit features a Heel Proof design for safety and includes a fixed secondary strainer and a **removable basket** for superior solids interception and easy compliance with trade waste regulations.
⬇️ Download Data Sheet (PDF) ⬇️ Installation Guide (PDF)
Key Features & Benefits:
-
Superior Marine Grade: Constructed from Grade 316 Stainless Steel, offering the highest level of corrosion resistance, especially against chlorides and harsh chemicals.
-
Heel Proof Design: Small aperture grate ensures safety and prevents high heels or small items from catching.
-

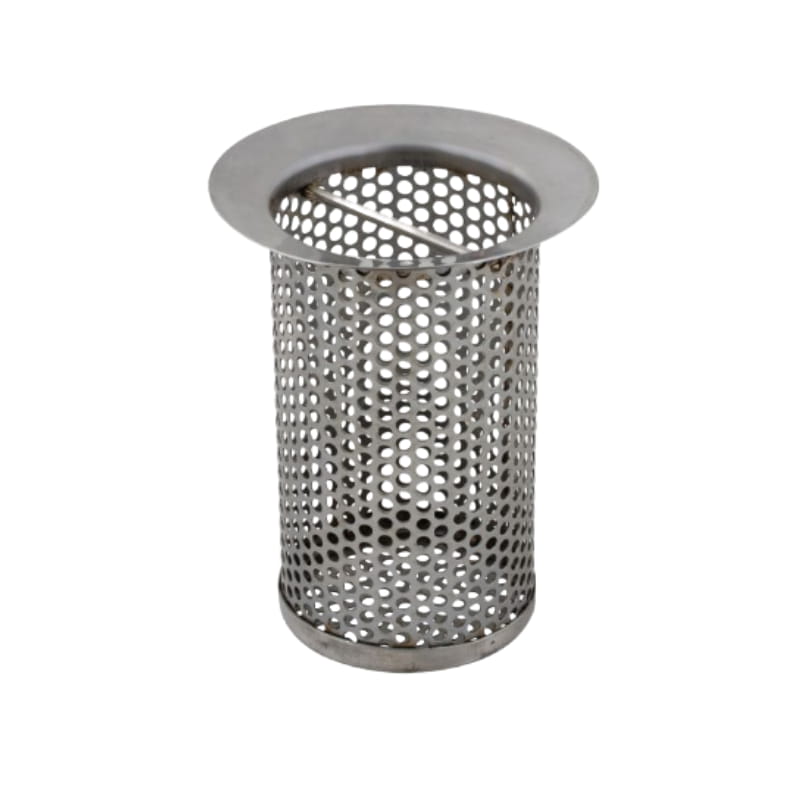

Three-Stage Filtration: Includes a hinged grate, fixed secondary strainer, and a **removable basket** for efficient solids interception and maintenance.
-
Standard Pipe Compatibility: Perfectly suited for standard 100mm DWV (Drain, Waste, Vent) pipe systems.
Application & Compatibility:
-
Suitable for 100mm DWV (Drain, Waste, Vent) pipe systems.
-
Highly Recommended for: Coastal Facilities, Food Processing with high salt/chlorine use, Laboratories, Chemical Handling Areas, and Breweries.
-
Designed for use with 150mm Square Floor Grates.
| Technical Specifications |
|
| Parameter |
Detail |
| Brand/Model |
3Monkeez / FW-150BS-316
|
| Arrestor Type |
Square Floor Waste (Hinged Grate & Basket) |
| Pipe Diameter Suitability |
100mm |
| Floor Grate Size |
150mm x 150mm |
| Material |
316 Marine Grade Stainless Steel (SS) |
| Compatibility |
100mm DWV, Square Outlet (High Corrosion Resistance) |
Manufacturer's Warranty Information
The 3Monkeez FW-150BS-316 150mm Square Floor Waste is backed by the manufacturer's robust commercial warranty. This product typically offers a generous 60-month (5-year) warranty covering defects in materials and workmanship under normal use. The warranty period commences from the date of purchase. To maintain validity, the product must be installed by a licensed contractor and used in strict accordance with 3Monkeez installation guidelines and relevant plumbing standards. For complete details regarding coverage, exclusions, and the full claim process, customers should consult the official 3Monkeez Warranty Terms page.
