3Monkeez 150mm Square Floor Waste System with Vertical Variable Height Main Body - Suits 100mm Pipe (Heel Proof)
Material Selection & Compatibility
This floor waste system is available with two grate material options. The FW-100VL Main Body is constructed from heavy-duty Cast Iron. While the manufacturer's standard list focuses on 304-grade compatibility, the 316-grade Grate shares identical dimensions and threading, making it fully compatible for installations requiring superior surface corrosion resistance.
For standard environments, the 304 Grade Stainless Steel version is suitable. For coastal venues, high-salinity areas, or facilities using harsh chemicals, we highly recommend selecting the 316 Grade Marine Grade Stainless Steel option to prevent tea-staining and pitting corrosion.

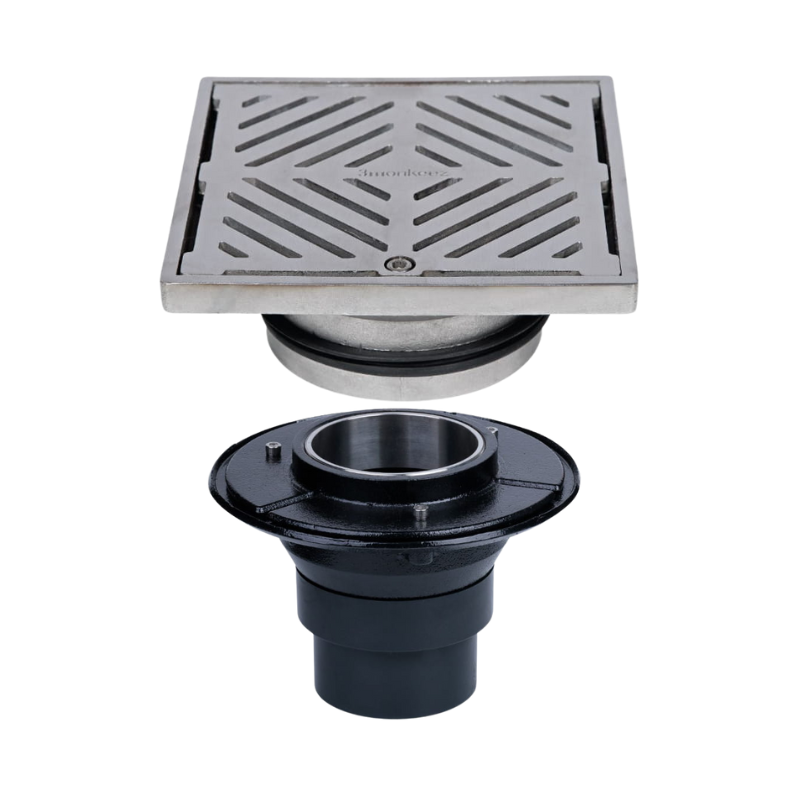

The 3Monkeez 150mm Square Floor Waste System is a professional-grade drainage solution. By combining the structural strength of a cast iron vertical variable height body with a precision-engineered 150mm x 150mm grate, this system allows for exact height adjustment during installation to ensure a seamless, flush finish with your floor tiles or screed.
⬇️ Download Grate Data Sheet (PDF)
⬇️ Download Body Data Sheet (PDF)
⬇️ Installation Guide (PDF)
Key Features & Benefits:
-
Vertical Variable Height: The FW-100VL body provides flexible vertical adjustment to match specific floor levels and screed depths.
-
Material Grade Options: Grates are available in Grade 304 or Grade 316 Stainless Steel for maximum defense against chlorides and pitting.
-

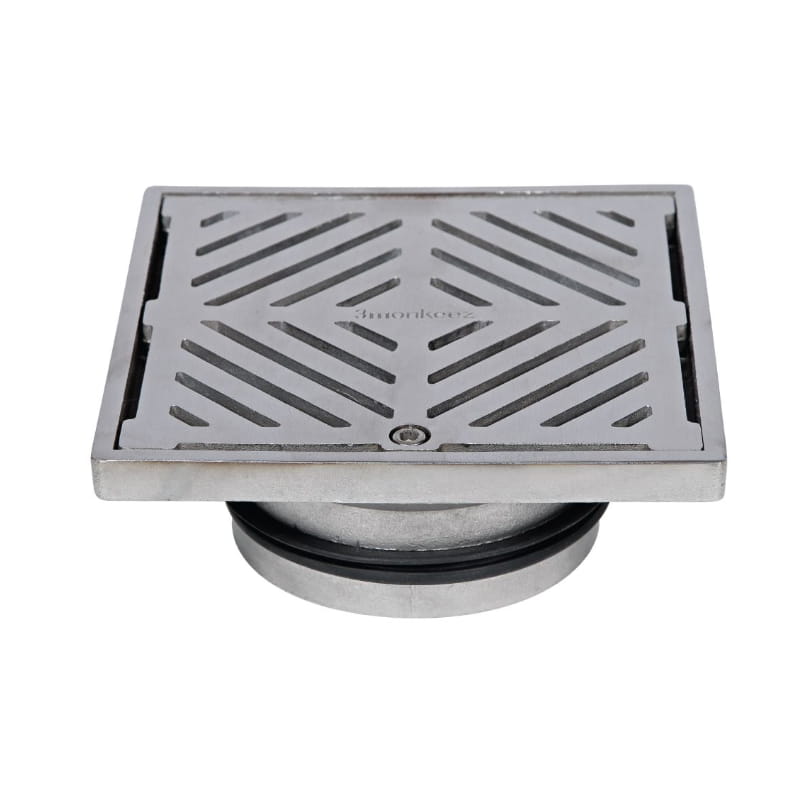

Safety Compliant: Includes a Heel Proof grate design, making it safe for high-traffic commercial and public areas.
-
Robust Foundation: The heavy-duty Cast Iron main body ensures long-term structural integrity and is designed to suit 100mm DWV or HDPE pipe systems.
-
Optimized Drainage: Engineered for high-flow efficiency in commercial kitchens, bathrooms, and laundries.
Application & Compatibility:
- Compatible with 100mm DWV and HDPE pipe systems.
-
316 Grade Recommended for: Coastal zones, high-exposure food processing, chemical handling areas, and marine environments.
-
Product Compatibility Note: The FW-100VL Cast Iron Body is fully compatible with both 304 and 316-grade grates due to shared threading specifications.
| Technical Specifications |
|
| Parameter |
Detail |
| Brand / Grate Model |
3Monkeez / FW-150S-304 or 316
|
| Main Body Model |
3Monkeez / FW-100VL
|
| Pipe Diameter Suitability |
100mm (DWV / HDPE) |
| Grate Size |
150mm x 150mm Square |
| Body Material |
Cast Iron (Vertical Variable Height) |
| Grate Material |
304 or 316 Stainless Steel (Heel Proof) |
Manufacturer's Warranty Information
The 3Monkeez Floor Waste System is backed by a robust commercial warranty, typically offering 12 months coverage on defects in materials and workmanship. Please refer to the official 3Monkeez Warranty Terms for complete details regarding coverage and claim processes.
