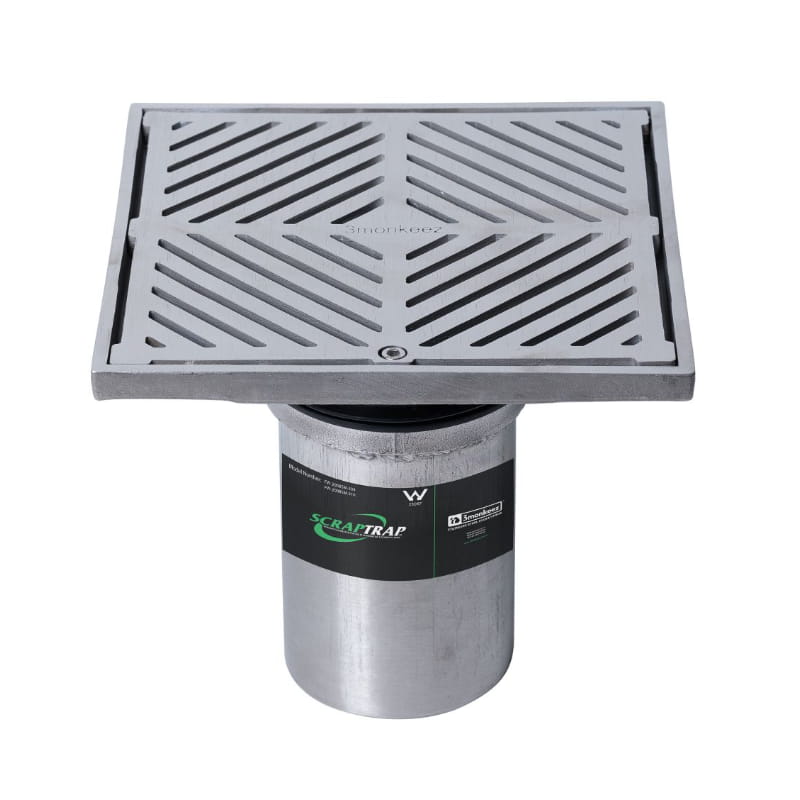

3Monkeez FW-200BSM-316 200mm Square Floor Waste Arrestor (100mm Pipe) (Heel Proof) - 316 Stainless Steel
Alternative Product Option
For environments with standard corrosion requirements, the highly durable **304 Grade Stainless Steel** version of this floor waste is also available.
Please click here to view the 3Monkeez FW-200BSM-304 200mm Square Floor Waste in 304 Stainless Steel.
The 3Monkeez FW-200BSM-316 200mm Square Floor Waste Arrestor is the highest specification drainage solution for demanding environments, requiring a larger grate footprint (200mm x 200mm) while connecting to standard **100mm pipework**. This unit is essential for facilities exposed to chlorides, salt spray, and harsh chemicals, such as coastal venues, laboratories, and specialized processing areas.
Constructed from premium **Grade 316 Marine Grade Stainless Steel**, this unit provides exceptional durability and **superior resistance to chlorides and pitting corrosion**. The large grate features a **Heel Proof** design for safety, and includes a fixed secondary strainer and a **removable basket** for superior solids interception, simplifying trade waste compliance in aggressive wet and hygienic environments.
⬇️ Download Data Sheet (PDF) ⬇️ Installation Guide (PDF)
Key Features & Benefits:
-
Superior Marine Grade: Constructed from **Grade 316 Stainless Steel**, offering the highest level of corrosion resistance, especially against chlorides and harsh chemicals.
-
Large Grate, Standard Pipe: Features a 200mm x 200mm square grate to cover larger floor areas while connecting seamlessly to standard 100mm DWV pipes.
-
Heel Proof Design: Small aperture grate ensures safety and prevents high heels or small items from catching.
-
Three-Stage Filtration: Includes a hinged grate, fixed secondary strainer, and a **removable basket** for highly efficient solids interception.
Application & Compatibility:
-
Suitable for **100mm** DWV (Drain, Waste, Vent) pipe systems.
-
Highly Recommended for: Coastal Facilities, Food Processing with high salt/chlorine use, Laboratories, Chemical Handling Areas, and Breweries.
-
Designed for use with **200mm Square Floor Grates**.
| Technical Specifications |
|
| Parameter |
Detail |
| Brand/Model |
3Monkeez / FW-200BSM-316
|
| Arrestor Type |
Square Floor Waste (Hinged Grate & Basket) |
| Pipe Diameter Suitability |
100mm |
| Floor Grate Size |
200mm x 200mm |
| Material |
316 Marine Grade Stainless Steel (SS) |
| Compatibility |
100mm DWV, Square Outlet (High Corrosion Resistance) |
Manufacturer's Warranty Information
The 3Monkeez FW-200BSM-316 200mm Square Floor Waste is backed by the manufacturer's robust commercial warranty. This product typically offers a generous 60-month (5-year) warranty covering defects in materials and workmanship under normal use. For complete details regarding coverage, exclusions, and the full claim process, customers should consult the official 3Monkeez Warranty Terms page.
