3Monkeez FW-225BS-100-304 225mm Square Floor Waste Arrestor (100mm Pipe) (Heel Proof) - 304 Stainless Steel
Alternative Product Option
For environments requiring enhanced protection against chlorides and harsh chemicals, the **316 Marine Grade Stainless Steel** version of this floor waste is recommended.
Please click here to view the 3Monkeez FW-225BS-100-316 225mm Square Floor Waste in 316 Stainless Steel.

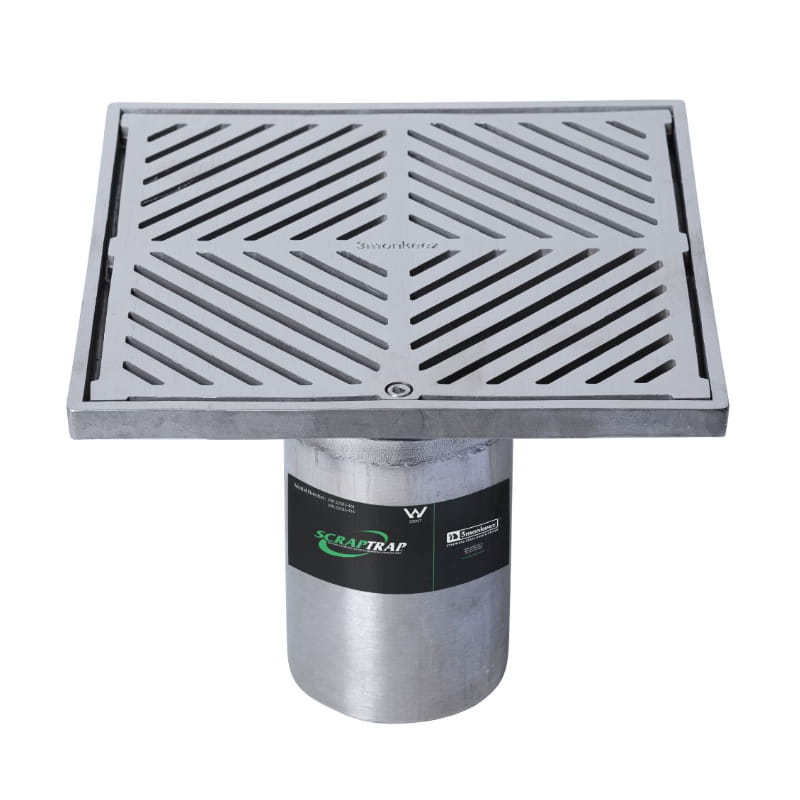

The 3Monkeez FW-225BS-100-304 225mm Square Floor Waste Arrestor is a large-format drainage solution designed for areas requiring maximum coverage (225mm x 225mm) while connecting to standard 100mm pipework. This unit is ideal for facilities where extensive grate surface area is necessary for effective catchments and safety, such as large washdown bays and commercial flooring.
Constructed from highly durable **Grade 304 Stainless Steel**, this unit provides excellent resistance to rust and corrosion in general wet and hygienic environments. The large grate features a safety-compliant **Heel Proof** design and includes a fixed secondary strainer and a **removable basket** for superior solids interception, ensuring simple cleaning and effective compliance with trade waste regulations.
⬇️ Download Data Sheet (PDF) ⬇️ Installation Guide (PDF)
Key Features & Benefits:
-
Extra Large Grate, Standard Pipe: Features a 225mm x 225mm square grate to cover extensive floor areas while connecting seamlessly to standard 100mm DWV pipes.
-
Durable 304 Grade: Constructed from **Grade 304 Stainless Steel**, offering reliable corrosion resistance for most commercial and industrial applications.
-
Heel Proof Design: Safety compliant grate design prevents heels or small items from catching, suitable for public and commercial areas.
-

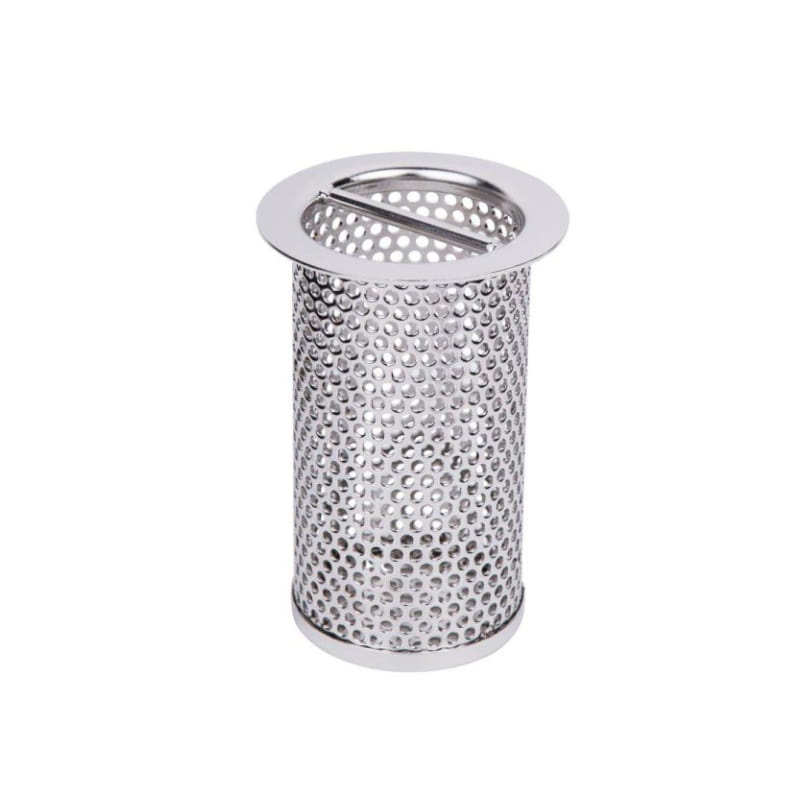

Three-Stage Filtration: Includes a hinged grate, fixed secondary strainer, and a **removable basket** for highly efficient solids interception and easy maintenance.
Application & Compatibility:
-
Suitable for **100mm** DWV (Drain, Waste, Vent) pipe systems.
-
Recommended for: Commercial Kitchens, Food Preparation Areas, Large Washdown Bays, and areas requiring a larger surface drain footprint.
-
Designed for use with **225mm Square Floor Grates**.
| Technical Specifications |
|
| Parameter |
Detail |
| Brand/Model |
3Monkeez / FW-225BS-100-304
|
| Arrestor Type |
Square Floor Waste (Hinged Grate & Basket) |
| Pipe Diameter Suitability |
100mm |
| Floor Grate Size |
225mm x 225mm |
| Material |
304 Grade Stainless Steel (SS) |
| Compatibility |
100mm DWV, Square Outlet (General Commercial Use) |
Manufacturer's Warranty Information
The 3Monkeez FW-225BS-100-304 225mm Square Floor Waste is backed by the manufacturer's robust commercial warranty. This product typically offers a generous 60-month (5-year) warranty covering defects in materials and workmanship under normal use. For complete details regarding coverage, exclusions, and the full claim process, customers should consult the official 3Monkeez Warranty Terms page.
