3Monkeez FW-225BS-150-316 225mm Square Floor Waste Arrestor (150mm Pipe) (Heel Proof) - 316 Stainless Steel
Alternative Product Option
For environments with standard corrosion requirements, the highly durable **304 Grade Stainless Steel** version of this floor waste is also available.
Please click here to view the 3Monkeez FW-225BS-150-304 225mm Square Floor Waste in 304 Stainless Steel.

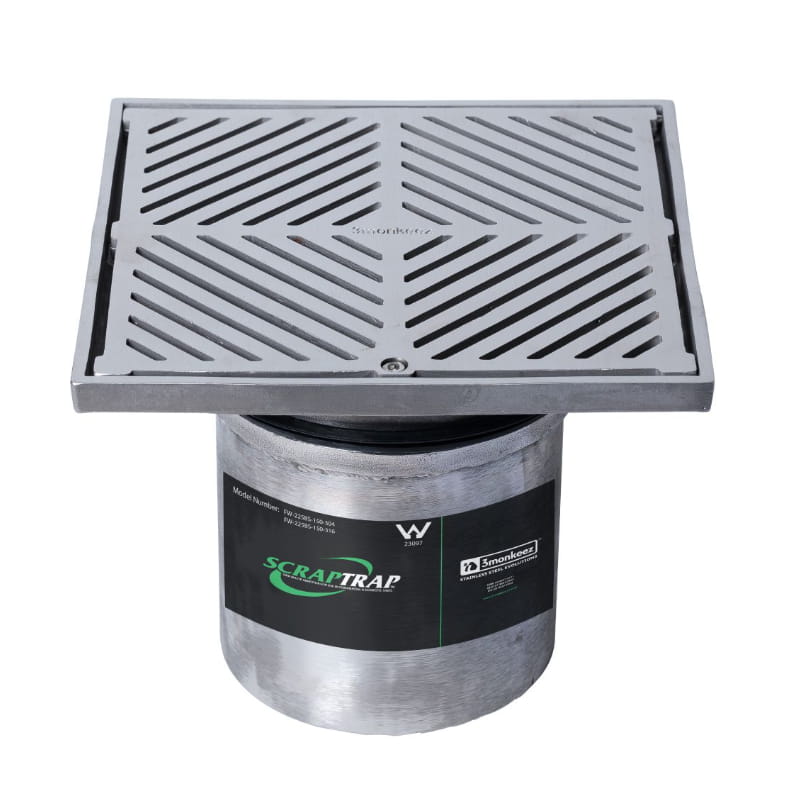

The 3Monkeez FW-225BS-150-316 225mm Square Floor Waste Arrestor is the **highest specification** heavy-duty drainage solution, combining an extra-large, safe grate footprint (225mm x 225mm) with **high-volume flow capacity** for **150mm pipework**. This unit is essential for demanding environments exposed to chlorides, salt spray, and harsh chemicals, where fast drainage and superior corrosion resistance are critical.
Constructed from premium **Grade 316 Marine Grade Stainless Steel**, this unit provides exceptional durability and **superior resistance to chlorides and pitting corrosion**. The large grate features a safety-compliant **Heel Proof** design and includes a fixed secondary strainer and a **removable basket** for highly efficient solids interception, ensuring effective trade waste compliance in the most aggressive wet and hygienic environments.
⬇️ Download Data Sheet (PDF) ⬇️ Installation Guide (PDF)
Key Features & Benefits:
-
Superior Marine Grade: Constructed from **Grade 316 Stainless Steel**, offering the highest level of corrosion resistance, especially against chlorides and harsh chemicals.
-
High Flow & Safety: Designed to suit **150mm** DWV pipe systems (for high volume) and features a **225mm x 225mm** grate with **Heel Proof** design.
-
Pitting Resistance: 316 grade stainless steel provides superior defense against pitting corrosion commonly found in high-salinity and chemical environments.
-

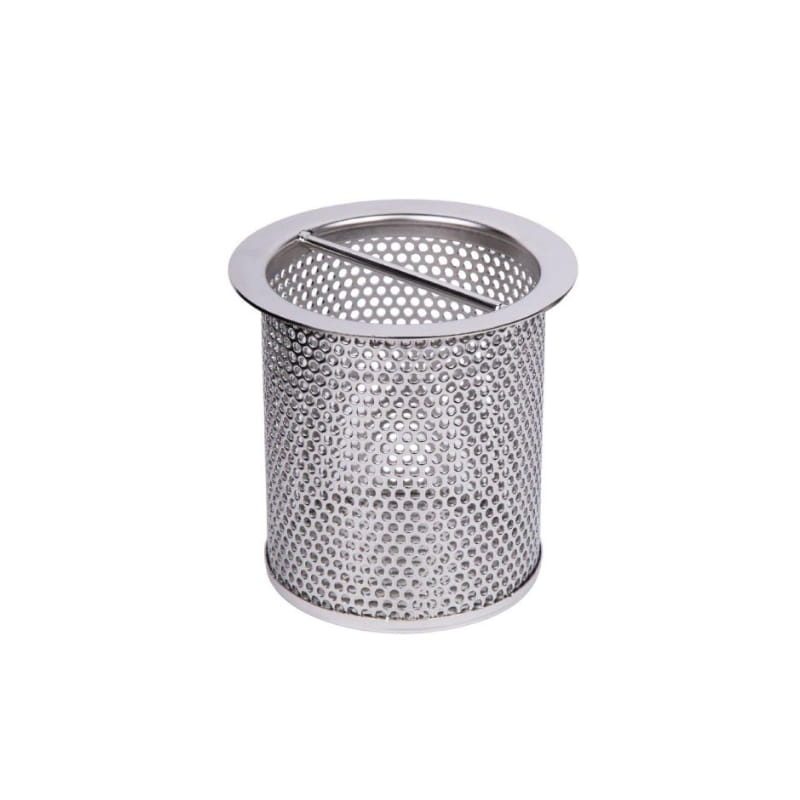

Three-Stage Filtration: Includes a hinged grate, fixed secondary strainer, and a **removable basket** for highly efficient solids interception and easy maintenance.
Application & Compatibility:
-
Suitable for **150mm** DWV (Drain, Waste, Vent) pipe systems.
-
Highly Recommended for: Coastal Facilities, Food Processing with high salt/chlorine use, Laboratories, Chemical Handling Areas, and high-volume washdown bays.
-
Designed for use with **225mm Square Floor Grates**.
| Technical Specifications |
|
| Parameter |
Detail |
| Brand/Model |
3Monkeez / FW-225BS-150-316
|
| Arrestor Type |
Square Floor Waste (Hinged Grate & Basket) |
| Pipe Diameter Suitability |
150mm |
| Floor Grate Size |
225mm x 225mm |
| Material |
316 Marine Grade Stainless Steel (SS) |
| Compatibility |
150mm DWV, Square Outlet (High Corrosion Resistance) |
Manufacturer's Warranty Information
The 3Monkeez FW-225BS-150-316 225mm Square Floor Waste is backed by the manufacturer's robust commercial warranty. This product typically offers a generous 60-month (5-year) warranty covering defects in materials and workmanship under normal use. For complete details regarding coverage, exclusions, and the full claim process, customers should consult the official 3Monkeez Warranty Terms page.
