3Monkeez 225mm Square Floor Waste System with Vertical Variable Height Main Body - Suits 150mm Pipe (Heel Proof)
Material Selection & Compatibility
This high-capacity floor waste system is designed for high-flow drainage and is available with two grate material options. The FW-150VL Main Body is constructed from heavy-duty Cast Iron. While standard documentation focus on 304-grade, the 316-grade Grate (FW-225S-150-316) shares identical dimensions, making it fully compatible for installations requiring maximum corrosion resistance.
For standard commercial environments, the 304 Grade Stainless Steel version is highly durable. For coastal facilities, high-salinity industrial zones, or laboratories using aggressive cleaning agents, we recommend the 316 Grade Marine Grade Stainless Steel option to ensure long-term surface integrity and superior resistance to pitting corrosion.

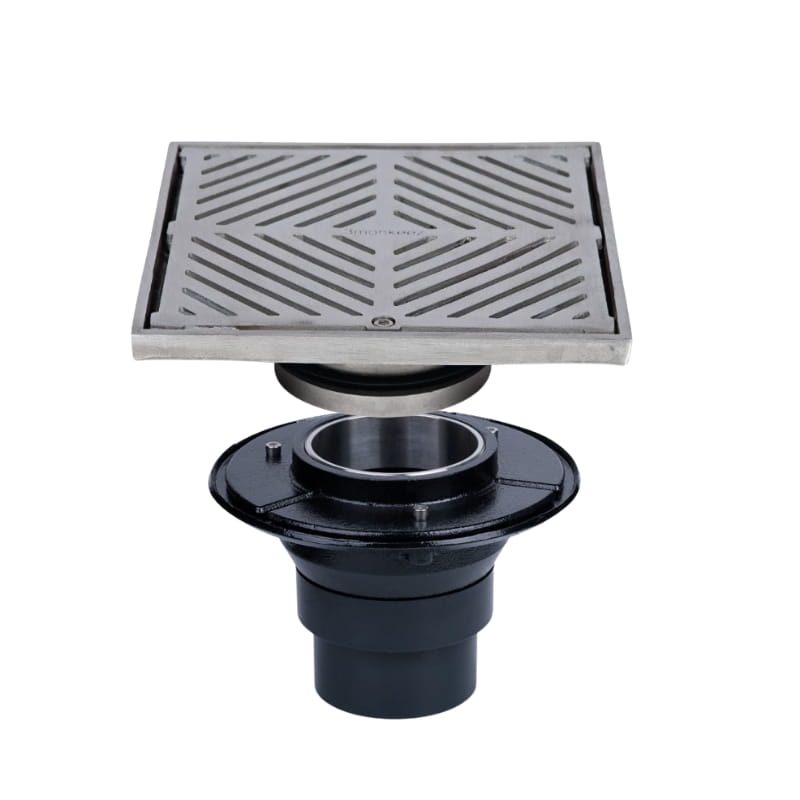

The 3Monkeez 225mm Square Floor Waste System for 150mm pipework is engineered for heavy-duty water evacuation. By combining a 150mm vertical variable height cast iron body with a 225mm x 225mm square grate, this system provides professional installers with the ability to adjust the floor level precisely while meeting the demands of high-volume drainage infrastructure.
⬇️ Download Grate Data Sheet (PDF)
⬇️ Download Body Data Sheet (PDF)
⬇️ Installation Guide (PDF)
Key Features & Benefits:
-
High-Flow Capacity: Designed specifically for 150mm DWV and HDPE pipe systems for maximum drainage performance.
-

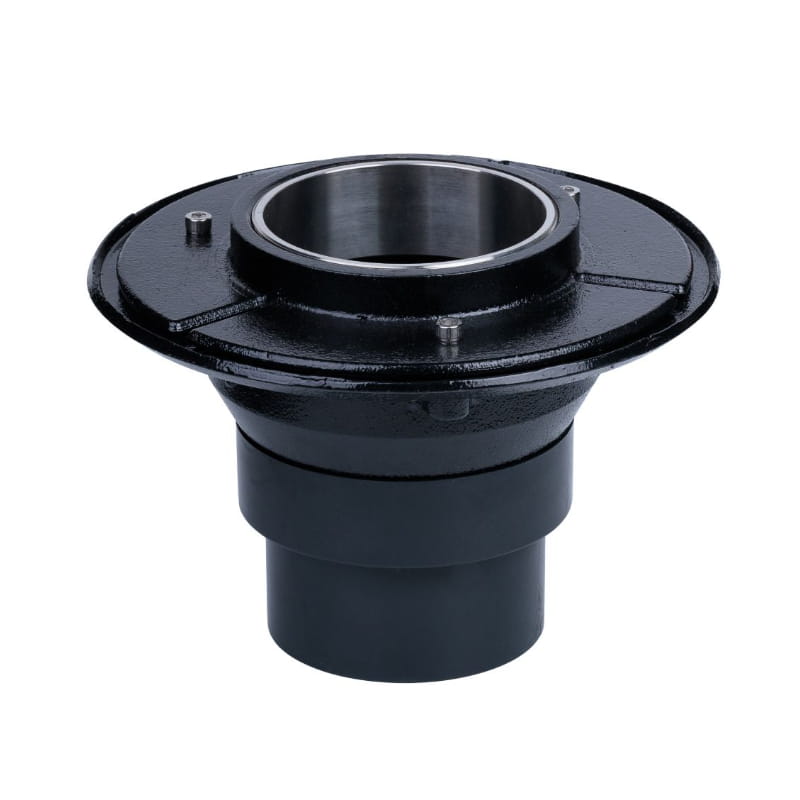

Vertical Variable Height: The FW-150VL body allows for precision vertical adjustment to match specific floor levels and slab thicknesses.
-
Material Versatility: Grates available in Grade 304 or Grade 316 Stainless Steel for superior defense in corrosive or marine environments.
-

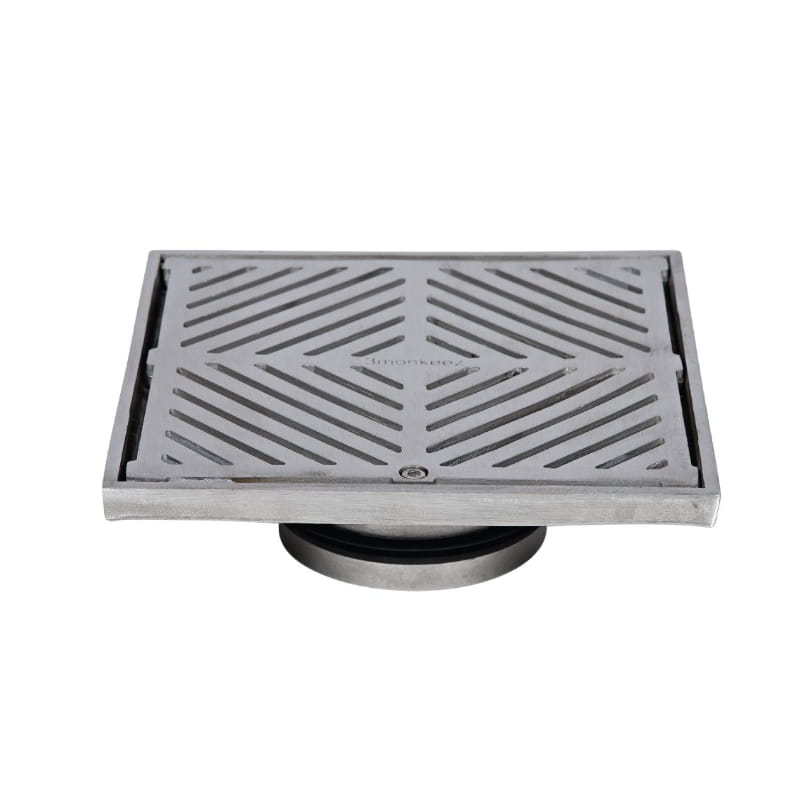

Safety Compliant: Features a Heel Proof grate design, ensuring pedestrian safety in public and high-traffic commercial spaces.
-
Industrial Strength: The heavy-duty Cast Iron main body provides the necessary structural foundation for large-scale plumbing infrastructure.
Application & Compatibility:
- Compatible with 150mm DWV and HDPE drainage pipework.
-
316 Grade Highly Recommended for: Coastal infrastructure, chemical washdown bays, industrial commercial kitchens, and marine applications.
-
Note: The FW-150VL body is physically compatible with both 304 and 316-grade grates in the 225mm square series (FW-225S-150).
| Technical Specifications |
|
| Parameter |
Detail |
| Brand / Grate Model |
3Monkeez / FW-225S-150-304 or 316
|
| Main Body Model |
3Monkeez / FW-150VL
|
| Pipe Diameter Suitability |
150mm (DWV / HDPE) |
| Grate Size |
225mm x 225mm Square |
| Body Material |
Cast Iron (Vertical Variable Height) |
| Grate Material |
304 or 316 Stainless Steel (Heel Proof) |
Manufacturer's Warranty Information
The 3Monkeez 150mm Floor Waste System is backed by a robust commercial warranty, offering 12 months coverage on defects in materials and workmanship. Please consult the official 3Monkeez warranty documentation for full terms.
