3Monkeez 250mm Square Floor Waste System with Vertical Variable Height Main Body - Suits 100mm Pipe (Heel Proof)
Material Selection & Compatibility
This wide-format floor waste system provides a larger catchment area and is available with two grate material options. The FW-100VL Main Body is constructed from heavy-duty Cast Iron. While standard manufacturer listings focus on 304-grade, the 316-grade Grate (FW-250S-316) shares identical dimensions and threading, making it fully compatible for installations requiring maximum corrosion resistance.
For standard commercial projects, the 304 Grade Stainless Steel version offers excellent durability. For coastal environments, high-salinity industrial facilities, or areas subject to harsh chemical cleaning, we recommend the 316 Grade Marine Grade Stainless Steel option to ensure superior resistance to tea-staining and pitting corrosion.

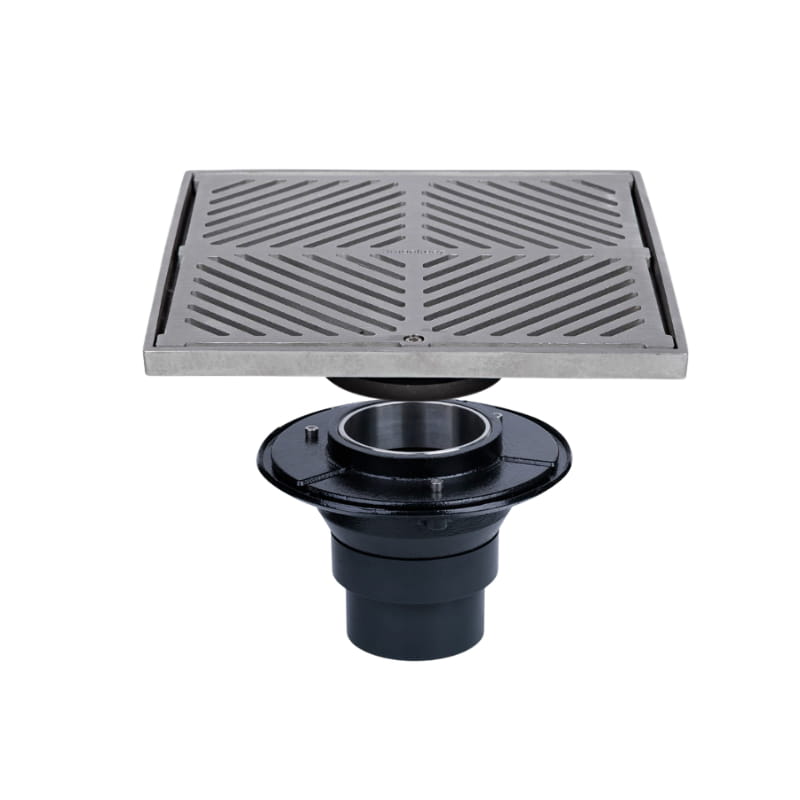

The 3Monkeez 250mm Square Floor Waste System is designed for larger floor areas requiring a 100mm pipe connection. By pairing the structurally robust cast iron FW-100VL body with a precision-engineered 250mm x 250mm square grate, this system allows for exact vertical height adjustment during the screeding and tiling process for a flush, professional finish.
⬇️ Download Grate Data Sheet (PDF)
⬇️ Download Body Data Sheet (PDF)
⬇️ Installation Guide (PDF)
Key Features & Benefits:
-

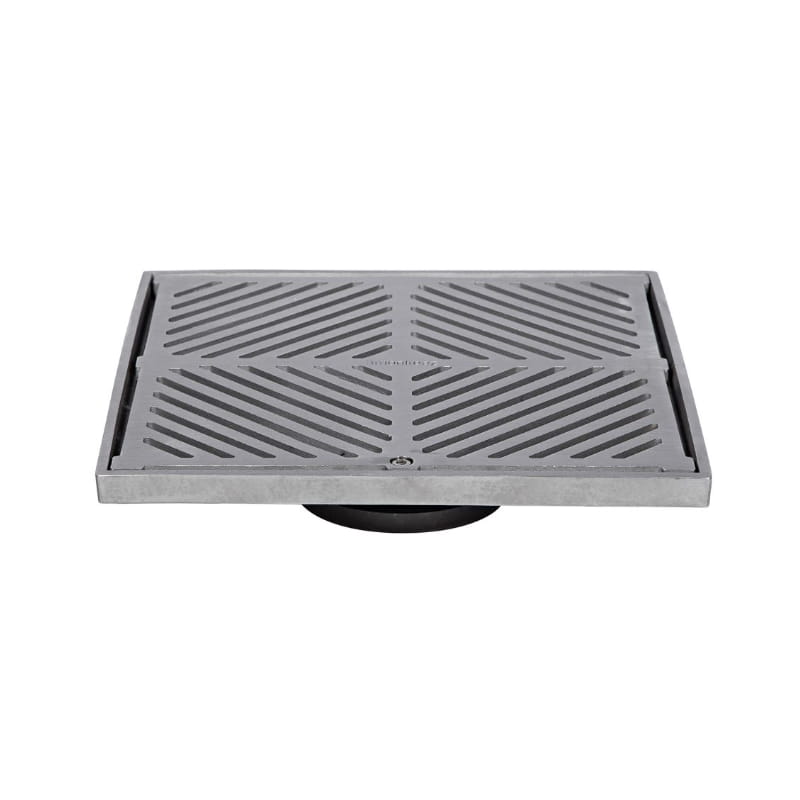

Large Surface Format: Extra-wide 250mm x 250mm square grate for increased water collection and architectural impact.
-
Vertical Variable Height: The FW-100VL body allows for precise vertical adjustment to match finished floor levels.
-
Premium Material Options: Available in Grade 304 or Grade 316 Stainless Steel for superior defense against harsh environmental factors.
-
Heel Proof Design: Safety-compliant grate design ensures the unit is suitable for high-traffic public and commercial spaces.
-
Heavy-Duty Foundation: Cast iron main body provides maximum structural integrity for 100mm DWV or HDPE drainage systems.
Application & Compatibility:
- Directly compatible with 100mm DWV and HDPE pipe systems.
-
316 Grade Highly Recommended for: Coastal facilities, laboratories, food processing plants, and high-exposure washdown areas.
-
Compatibility Note: The FW-100VL cast iron body is fully compatible with both the 304 and 316-grade grates in the 250mm square series.
| Technical Specifications |
|
| Parameter |
Detail |
| Brand / Grate Model |
3Monkeez / FW-250S-304 or 316
|
| Main Body Model |
3Monkeez / FW-100VL
|
| Pipe Diameter Suitability |
100mm (DWV / HDPE) |
| Grate Size |
250mm x 250mm Square |
| Body Material |
Cast Iron (Vertical Variable Height) |
| Grate Material |
304 or 316 Stainless Steel (Heel Proof) |
Manufacturer's Warranty Information
The 3Monkeez 250mm Floor Waste System is backed by a robust commercial warranty, typically offering 12 months coverage on defects in materials and workmanship. For further details, please consult the official 3Monkeez warranty terms.
