3Monkeez 300mm Square Floor Waste System with Vertical Variable Height Main Body - Suits 150mm Pipe (Heel Proof)
Material Selection & Compatibility
This high-capacity, large-format floor waste system is designed for maximum water evacuation and is available with two grate material options. The FW-150VL Main Body is constructed from heavy-duty Cast Iron. While standard documentation focus on 304-grade, the 316-grade Grate (FW-300S-150-316) shares identical dimensions, making it fully compatible for installations requiring maximum corrosion resistance.
For standard commercial and industrial projects, the 304 Grade Stainless Steel version is highly durable. For coastal infrastructure, high-salinity industrial zones, or laboratories using aggressive cleaning agents, we recommend the 316 Grade Marine Grade Stainless Steel option to ensure long-term surface integrity and superior resistance to pitting corrosion.

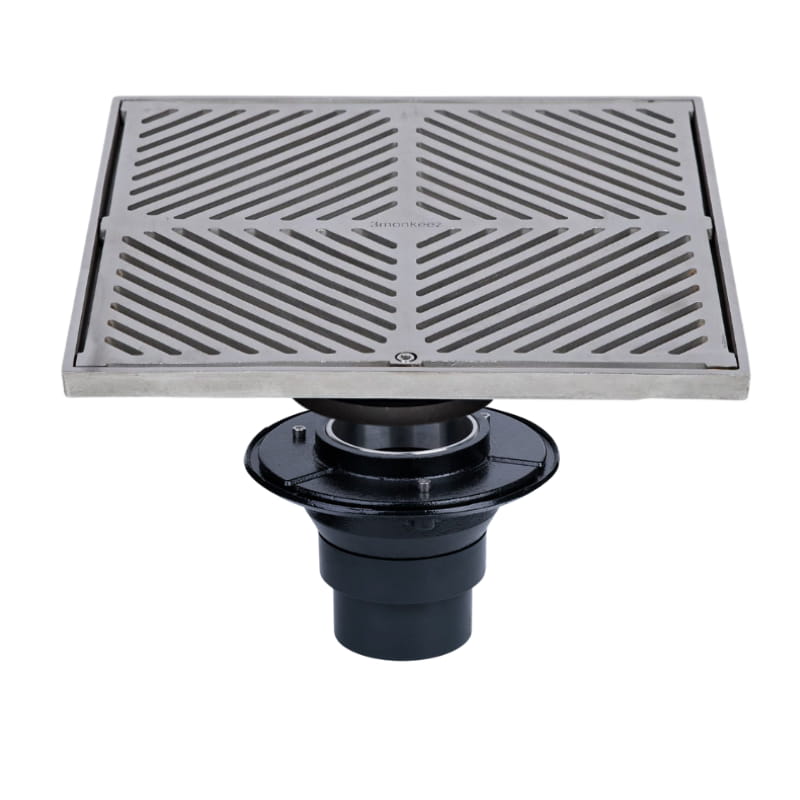

The 3Monkeez 300mm Square Floor Waste System for 150mm pipework is the ultimate heavy-duty solution for high-flow drainage. By combining a 150mm vertical variable height cast iron body with a massive 300mm x 300mm square grate, this system provides professional installers with the ability to adjust the floor level precisely while meeting the most demanding water volume requirements in large-scale commercial and industrial environments.
⬇️ Download Grate Data Sheet (PDF)
⬇️ Download Body Data Sheet (PDF)
⬇️ Installation Guide (PDF)
Key Features & Benefits:
-
Maximum High-Flow Capacity: Optimized for 150mm DWV and HDPE pipe systems, suitable for high-volume commercial kitchens, industrial floors, and washdown bays.
-

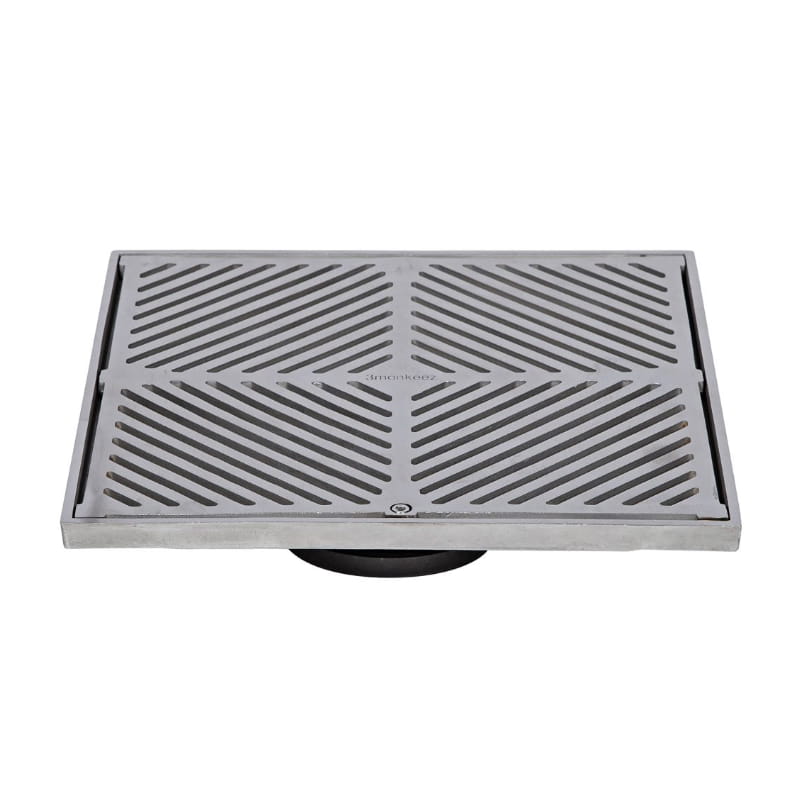

Large Architectural Format: Massive 300mm x 300mm square grate for maximum surface water catchment.
-

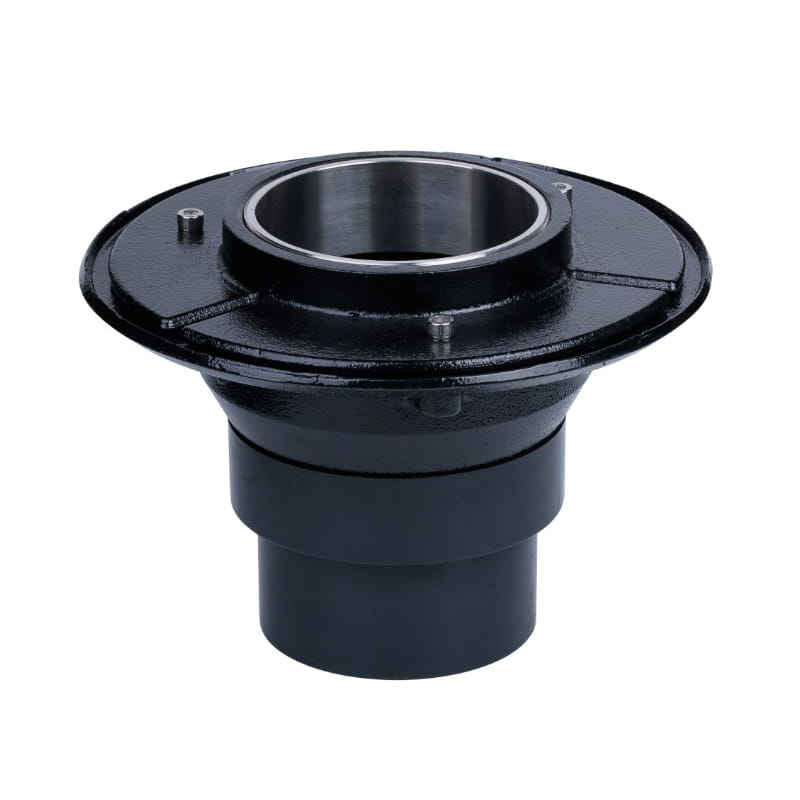

Vertical Variable Height: The FW-150VL body allows for precision vertical adjustment to match specific finished floor levels.
-
Material Grade Options: Available in Grade 304 or Grade 316 Stainless Steel for superior defense in highly corrosive or marine environments.
-
Safety Compliant: Features a Heel Proof grate design, ensuring safety for pedestrians in busy public and commercial zones.
Application & Compatibility:
- Compatible with 150mm DWV and HDPE drainage pipework.
-
316 Grade Highly Recommended for: Coastal infrastructure, chemical washdown bays, industrial processing plants, and marine applications.
-
Note: The FW-150VL body is physically compatible with both 304 and 316-grade grates in the 300mm square series (FW-300S-150).
| Technical Specifications |
|
| Parameter |
Detail |
| Brand / Grate Model |
3Monkeez / FW-300S-150-304 or 316
|
| Main Body Model |
3Monkeez / FW-150VL
|
| Pipe Diameter Suitability |
150mm (DWV / HDPE) |
| Grate Size |
300mm x 300mm Square |
| Body Material |
Cast Iron (Vertical Variable Height) |
| Grate Material |
304 or 316 Stainless Steel (Heel Proof) |
Manufacturer's Warranty Information
The 3Monkeez 150mm High-Flow Floor Waste System is backed by a robust commercial warranty, offering 12 months coverage on defects in materials and workmanship. Please consult the official 3Monkeez warranty documentation for full terms.
