Achieve a seamless, sophisticated floor finish with the Amoza DN100 #316 Stainless Steel Tile Insert Grate. Engineered from heavy-duty marine-grade #316 stainless steel, this WaterMark certified floor waste allows your chosen tile to sit directly within the tray for a sleek, hidden drainage look. Designed to withstand harsh indoor and outdoor environments, it combines high flow efficiency with superior long-term durability.
Why Choose the Amoza DN100 #316 Tile Insert Grate?
-
Marine Grade #316 Stainless Steel: Superior corrosion and rust resistance compared to standard 304 steel, making it ideal for indoor showers, coastal areas, pools, and outdoor patios.
-
Heavy-Duty 2.5mm Welded Construction: Fully welded 2.5mm solid stainless steel frame ensures exceptional structural integrity and load resistance under foot traffic.
-
Precision Architectural Framing: Features crisp, straight edges and square corners for clean grout lines and effortless integration into ceramic, porcelain, or stone floor tiles.
-
Anti-Rattle Rubber Seats: Integrated rubber seating pads hold the tile tray firm and silent, eliminating wobbles and metal-on-metal rattling.
-
WaterMark Certified Quality: Fully tested and accredited to Australian plumbing standards for peace of mind during building inspections and installations.
-
10-Year Manufacturing Warranty: Backed by Amoza's comprehensive 10-year warranty covering manufacturing and material reliability.
Color Finishes & Model SKU Specifications
Select your preferred finish below to match your bathroom hardware and tapware suite:
| Finish / Color |
SKU |
Style & Match Guide |
| Brushed Stainless Steel |
W636SS |
Classic brushed metallic finish, matches brushed stainless fixtures. |

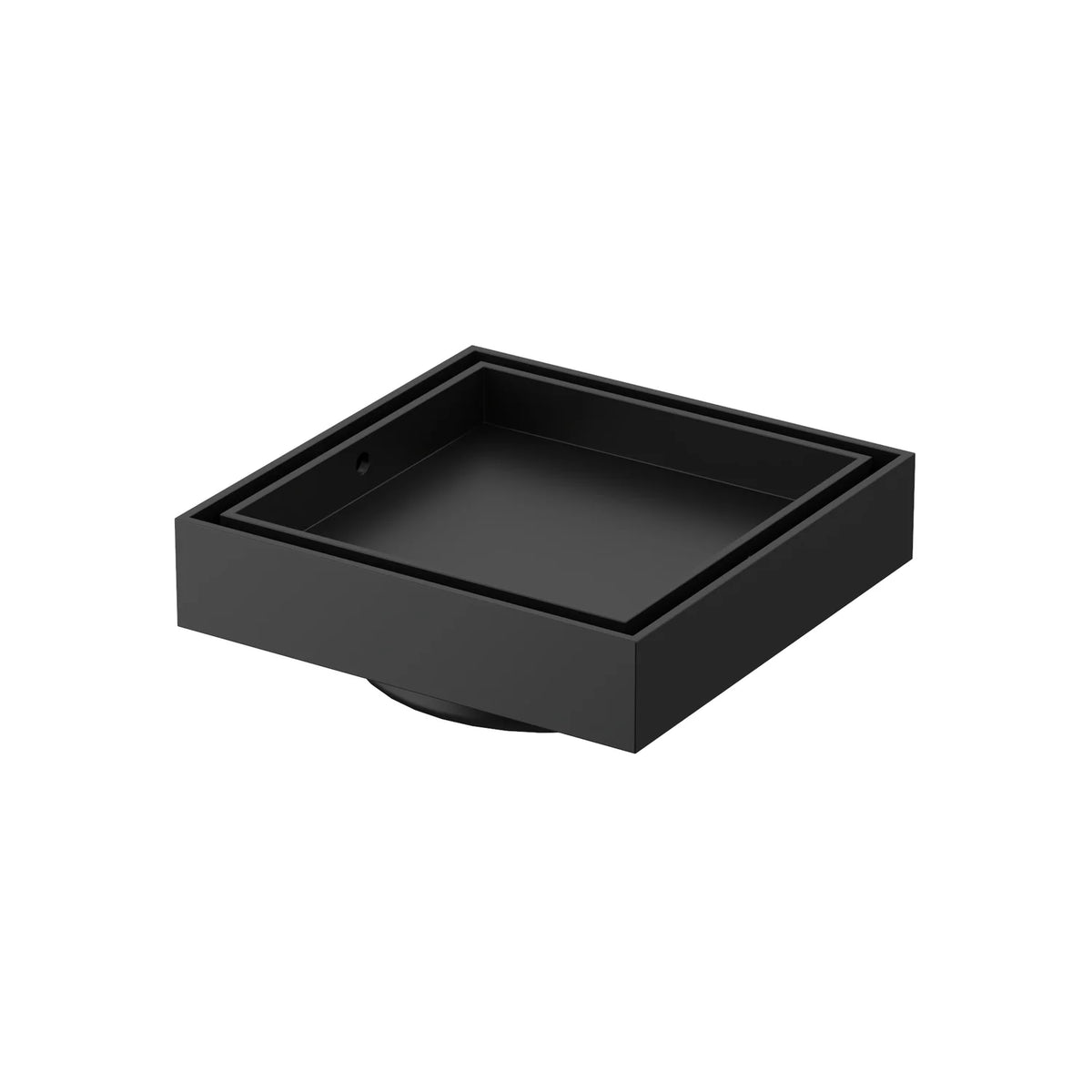

| Matte Black |
W636MB |
Bold, modern edge for dark tiles or contrasting monochrome designs. |

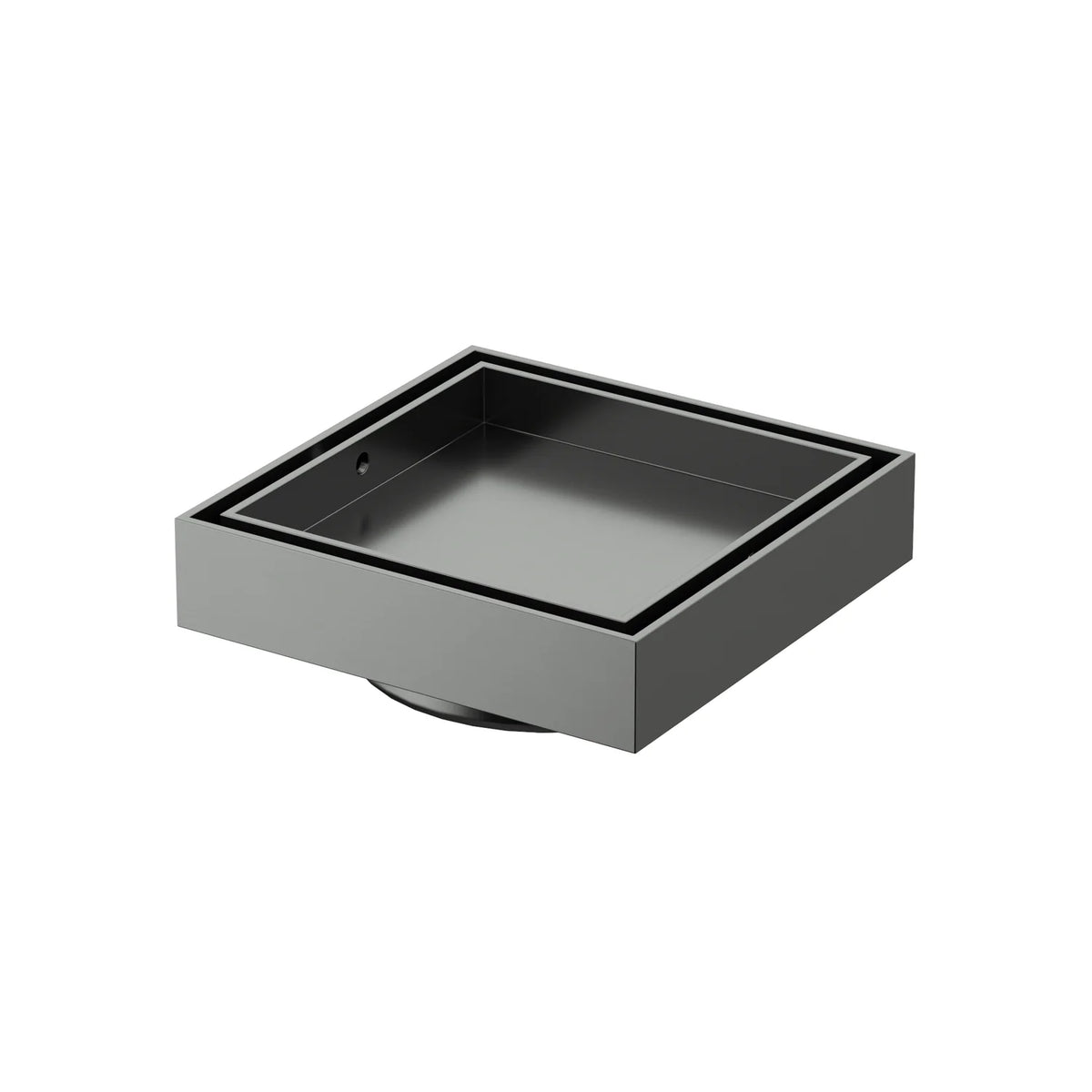

| Gunmetal |
W636GM |
Sleek dark grey tone that complements industrial and modern grey tiles. |

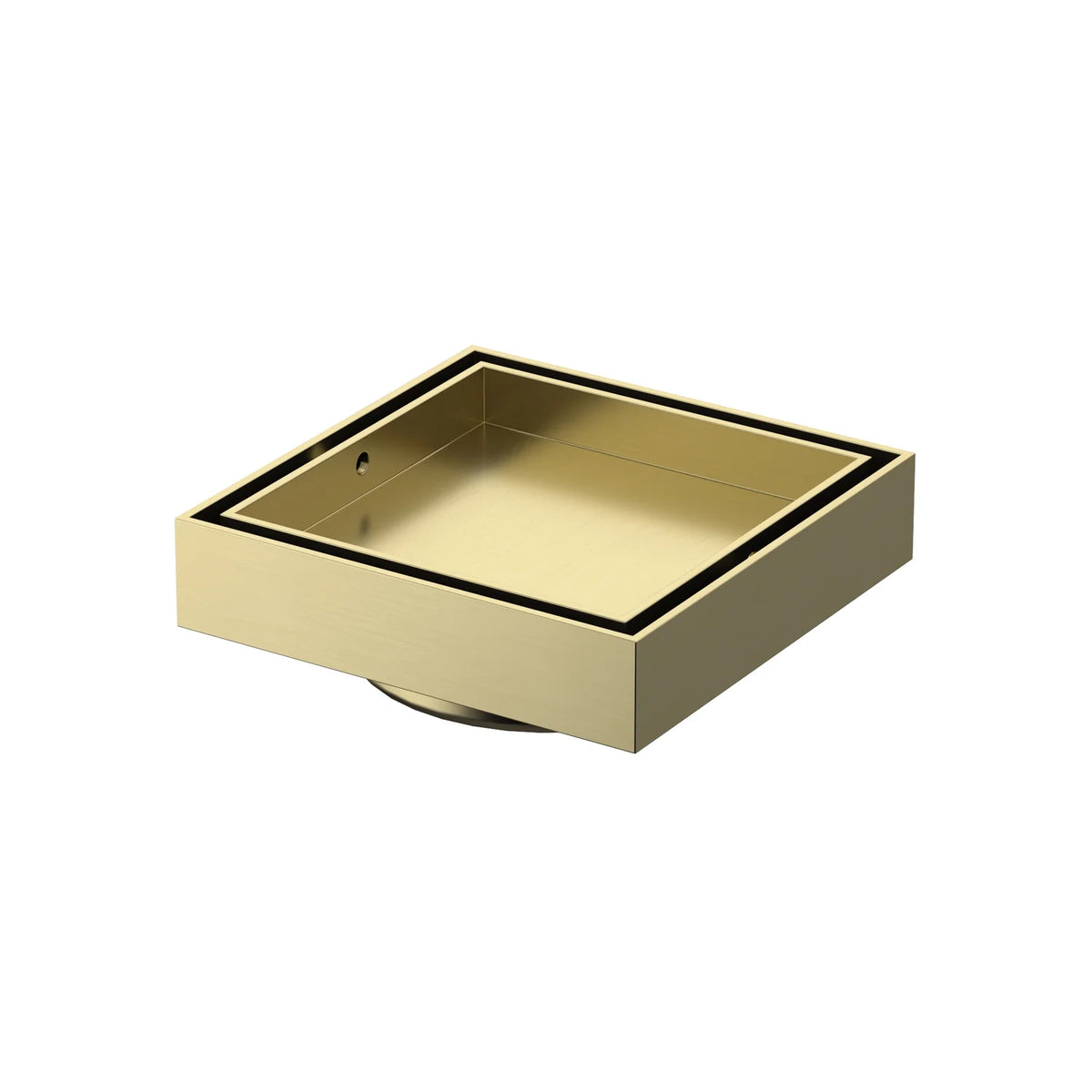

| Brushed Gold |
W636BG |
Warm luxury accent to tie in with brass and gold tapware ranges. |
| Brushed Copper |
W636BC |
Rich organic metallic finish adding warmth to timber and stone looks. |

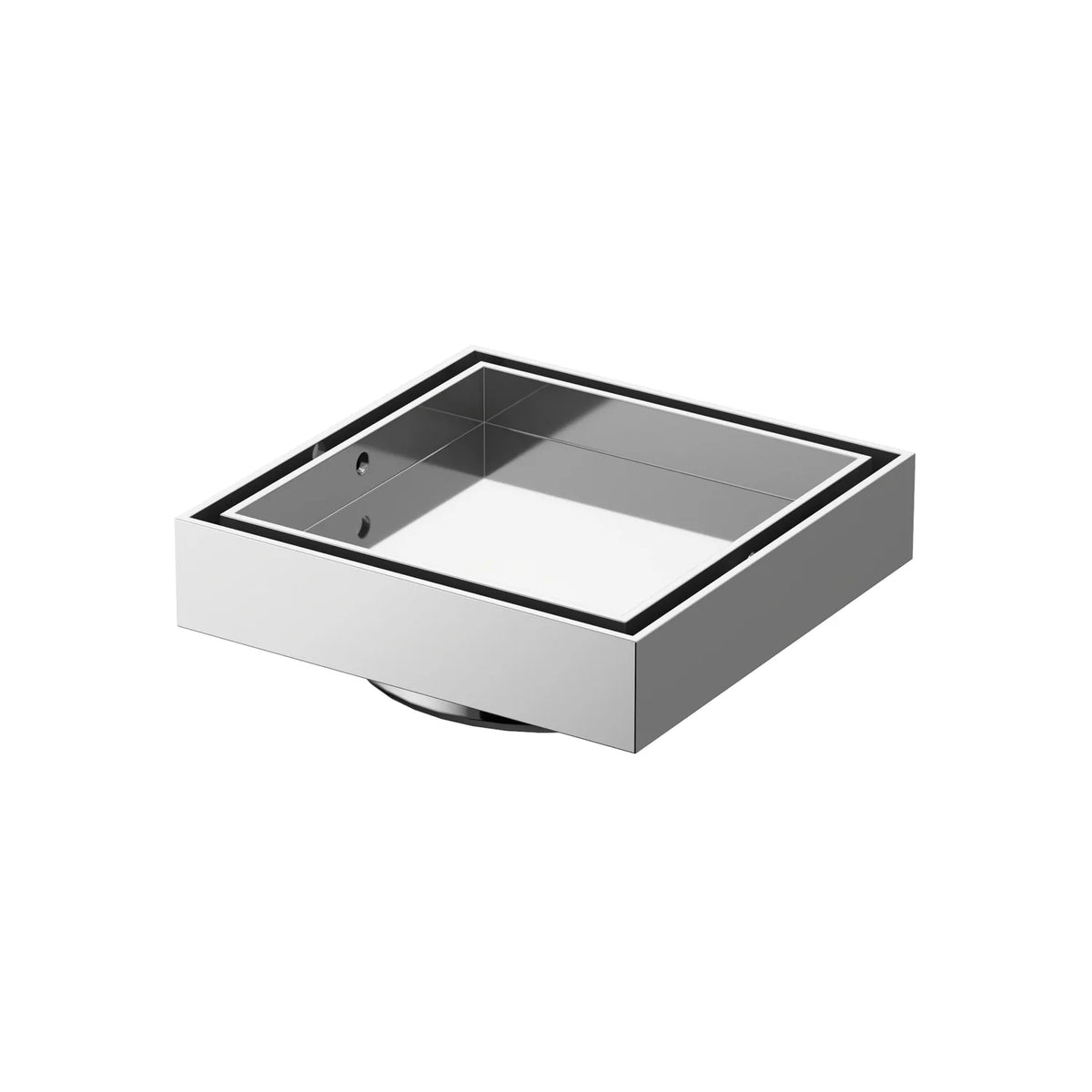

| Chrome |
W636CP |
High-shine mirror polish for traditional or bright contemporary spaces. |

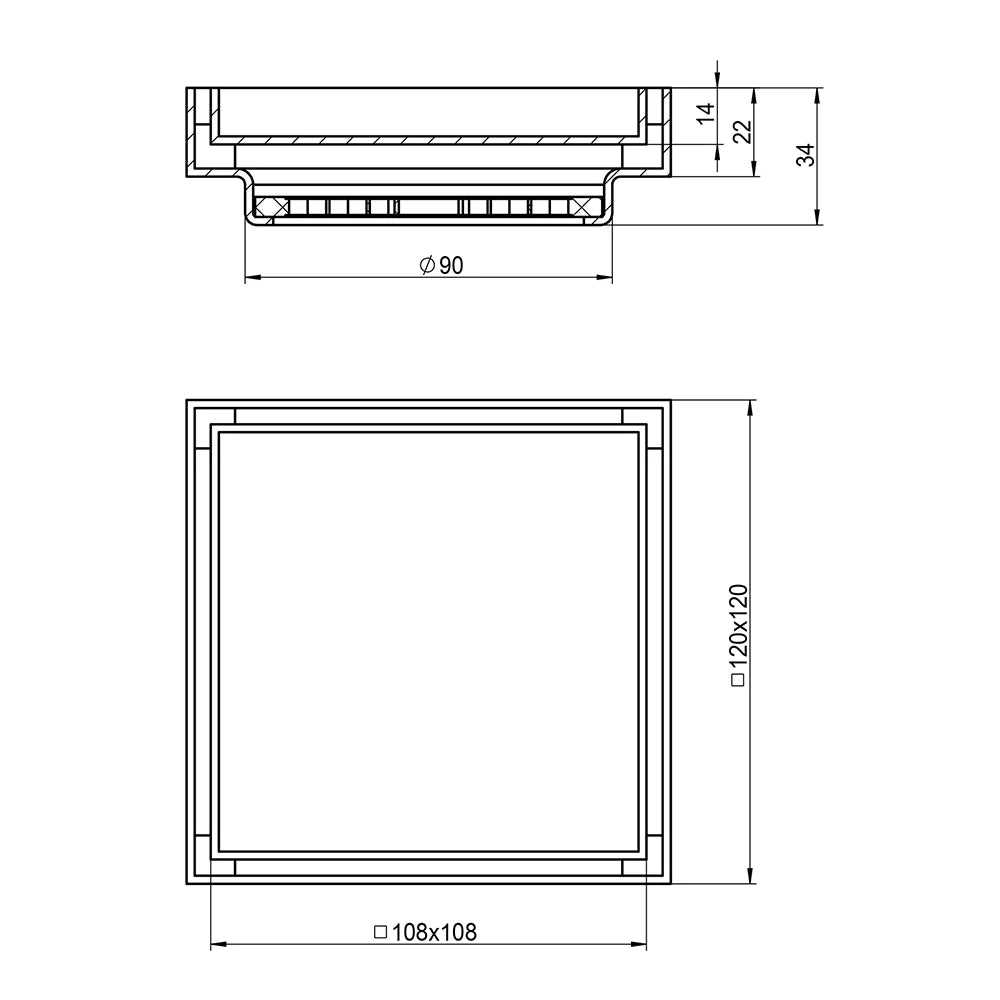

Technical Specifications & Dimensions
-
Brand: Amoza Plumbing Solutions
-
Product Code Series: W636
-
Overall Top Dimensions: 120 mm x 120 mm
-
Inner Tile Tray Size: 108 mm x 108 mm
-
Outlet Outer Diameter: Ø 90 mm (Fits standard DN100 / 100mm DWV PVC pipe connections)
-
Tile Insert Depth Capacity: 14 mm max tile thickness
-
Total Height/Depth: 34 mm
-
Material: Marine-Grade #316 Stainless Steel
-
Steel Thickness: 2.5 mm heavy-duty welded stainless steel
-
Suitability: Suitable for both indoor bathrooms & harsh outdoor environments
-
Certification: WaterMark Certified
-
Warranty: 10-Year Manufacturing Warranty
What’s Included in the Package?
- 1x Amoza #316 Stainless Steel Tile Insert Tray
- 1x Amoza #316 Stainless Steel Outer Drain Body Frame
- 1x Set of Anti-Rattle Rubber Stabiliser Seats
Care & Maintenance Instructions
Clean regularly by lifting out the tile tray and rinsing away hair, soap scum, and debris. Clean metal surfaces with warm soapy water and a soft microfibre cloth. Avoid bleach, strong acid drain cleaners, or harsh steel wool pads to protect the marine-grade steel and color coatings.
