Amoza MX8680 Swivel Bath & Basin Spout – 304 Stainless Steel
The Amoza MX8680 Swivel Bath Spout is a wall-mounted 304 stainless steel spout for baths and wall-mounted basins. Its swivel arm lets you reposition the outlet, while a sliding cover plate helps achieve a neat finish against the wall. Choose from six finishes to coordinate with your bathroom tapware.
Key Features & Benefits
-
Swivel design: Reposition the spout to suit your bath or basin layout.
-
304 stainless steel arm: Durable, corrosion-resistant construction for everyday bathroom use.
-
Basin-ready aerator: Supplied with a 6L/min aerator for wall basin use.
-
Bath-use aerator included: An additional non-restricted aerator and aerator key are supplied for bath use.
-
Sliding cover plate: Adjusts against the wall for a tidy installation.
-
Six finishes: Chrome, Matt Black, Brushed Stainless Steel, Brushed Gold, Gun Metal and Brushed Copper.
-
Manufacturer warranty: 7 years, subject to Amoza's warranty terms.
Technical Specifications
| Brand / model |
Amoza / MX8680 series |
| Product type |
Wall-mounted swivel bath and basin spout |
| Arm material |
304 stainless steel |
| Wall-to-outlet centre |
239.29mm, as shown on the manufacturer's drawing |
| Overall projection |
251.79mm, as shown on the manufacturer's drawing |
| Swivel axis to outlet centre |
197.29mm |
| Cover plate diameter |
60mm |
| Spout tube diameter |
25mm |
| Inlet connection |
G1/2 female thread |
| Aerators |
6L/min basin aerator plus additional non-restricted bath aerator and key |
| Warranty |
7-year manufacturer warranty; terms apply |
Colour & Model Guide
| Finish |
SKU |

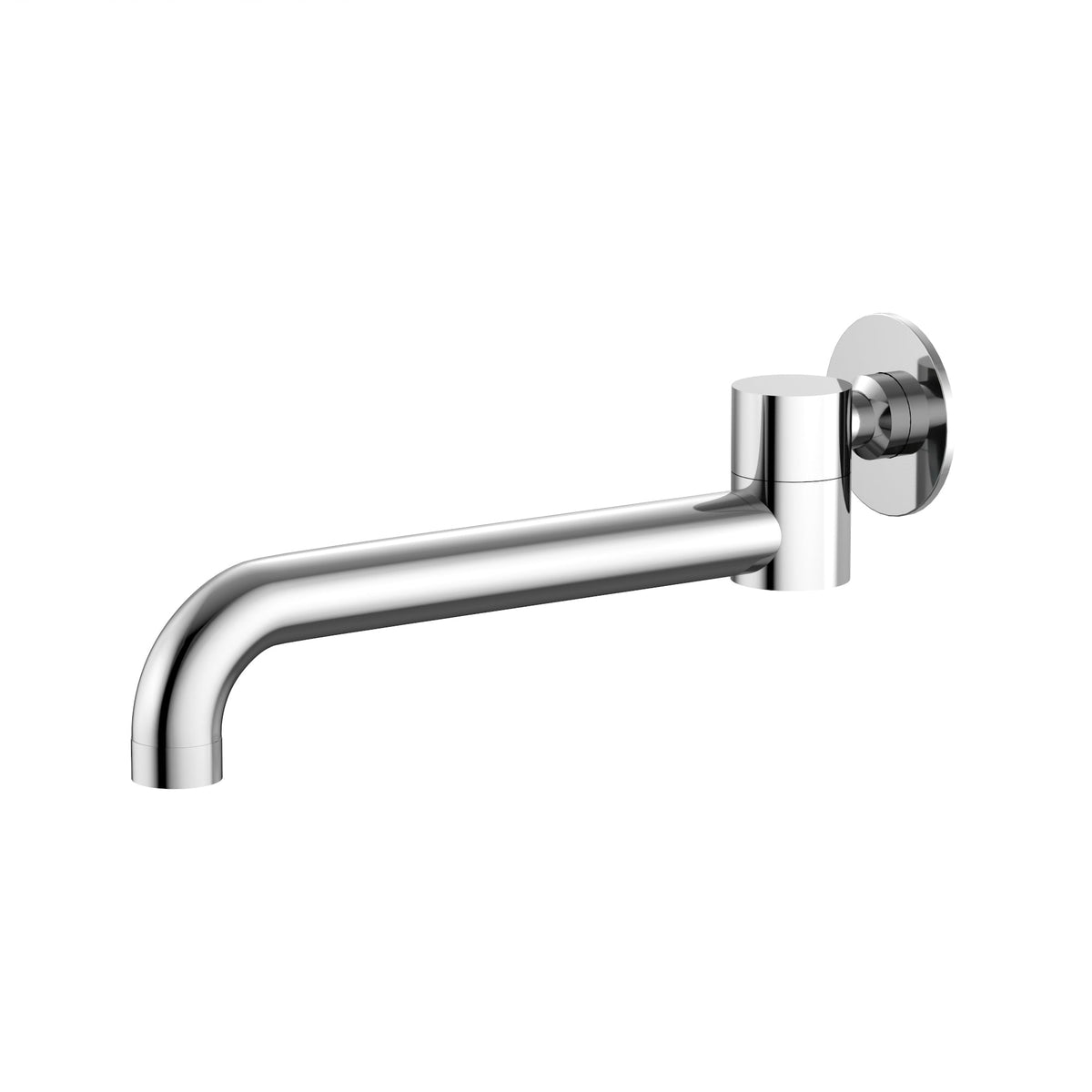

| Chrome |
MX8680CP |

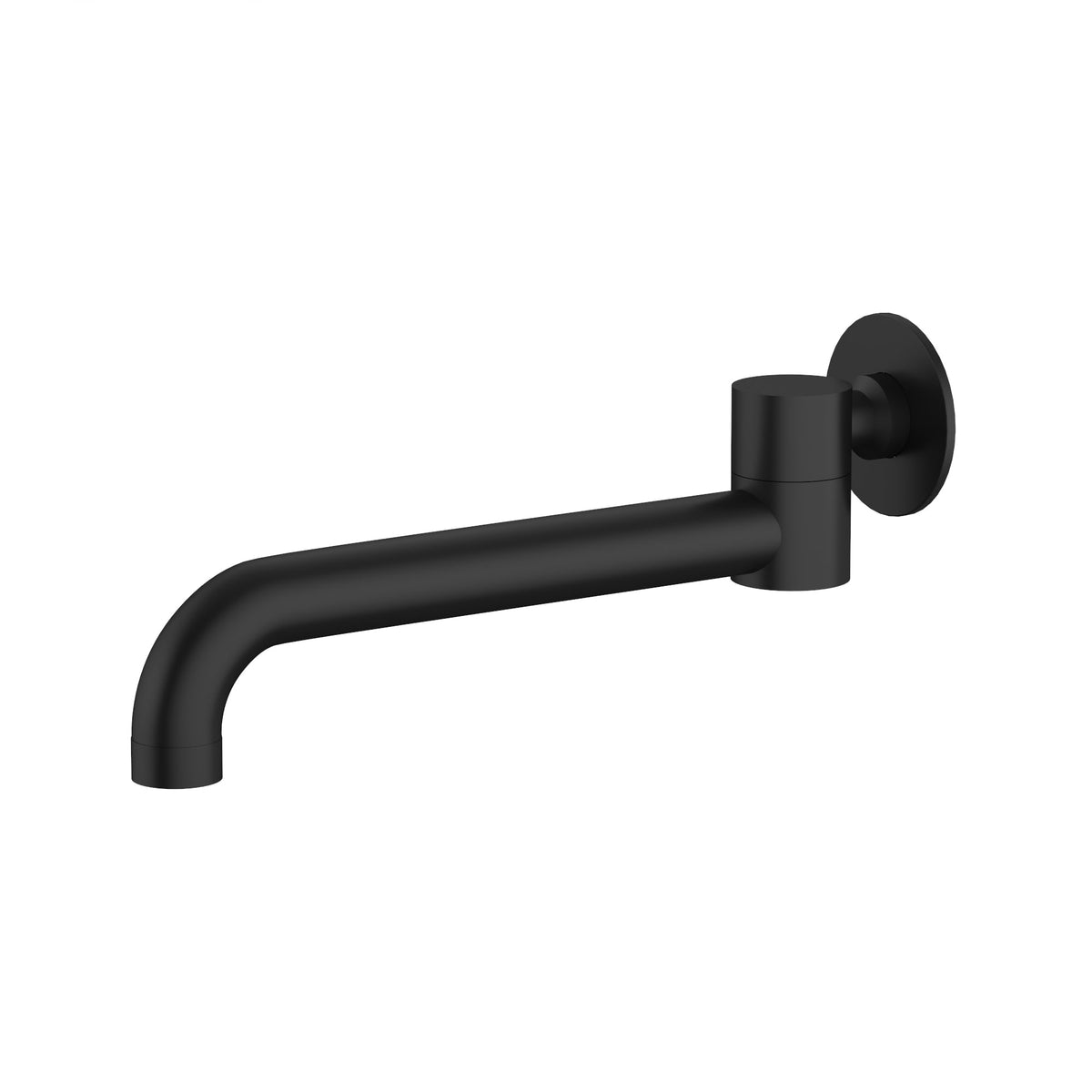

| Matt Black |
MX8680MB |

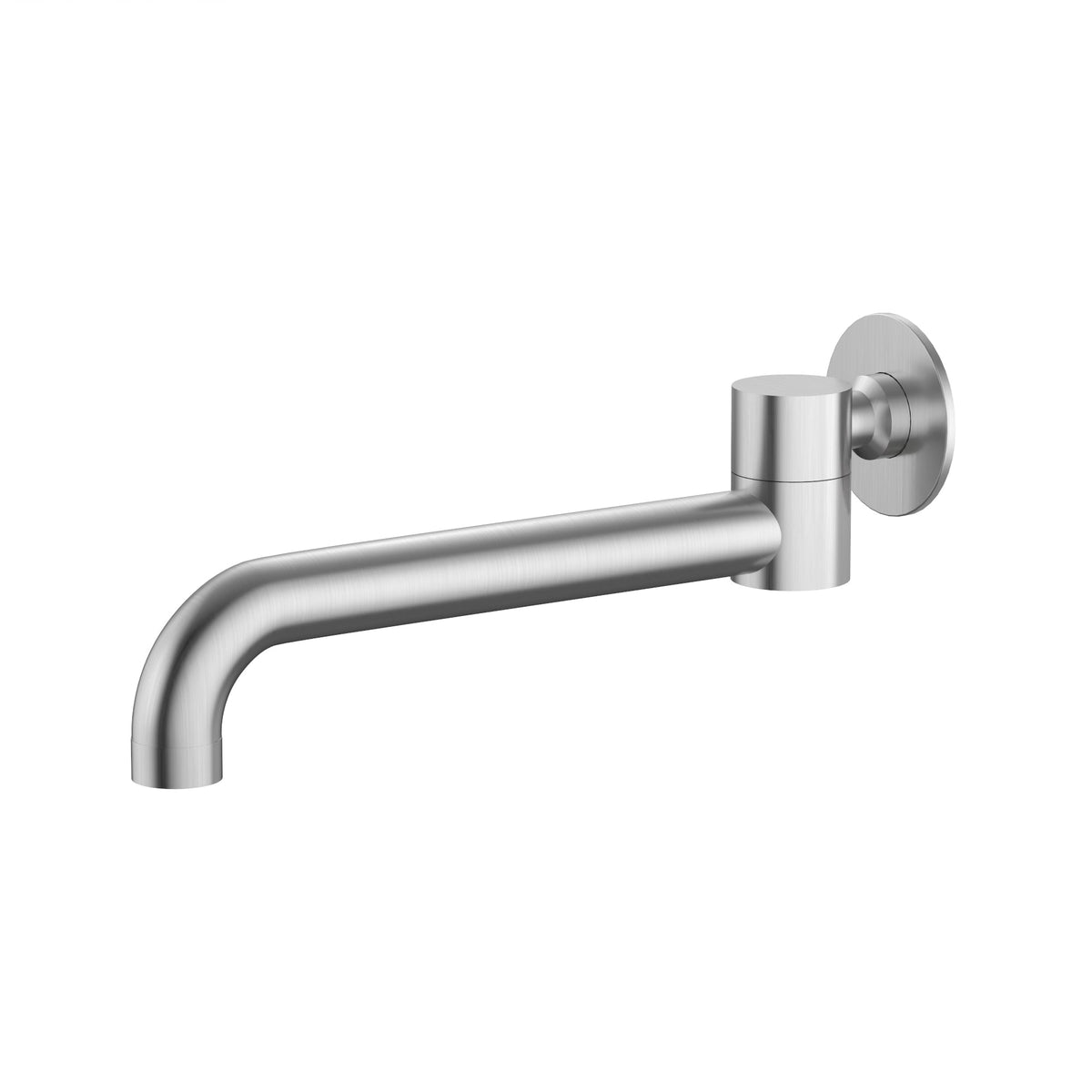

| Brushed Stainless Steel |
MX8680 |

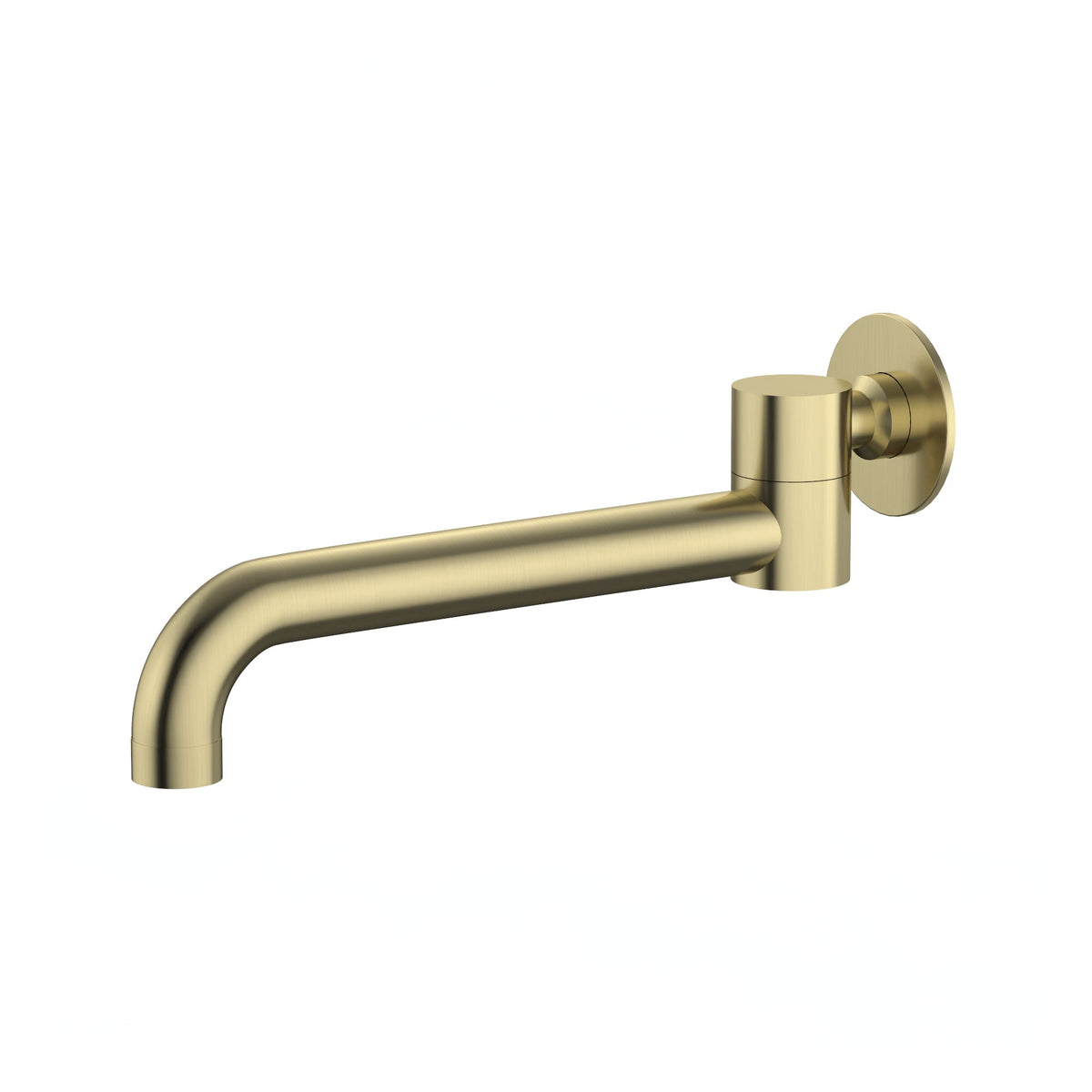

| Brushed Gold |
MX8680BG |

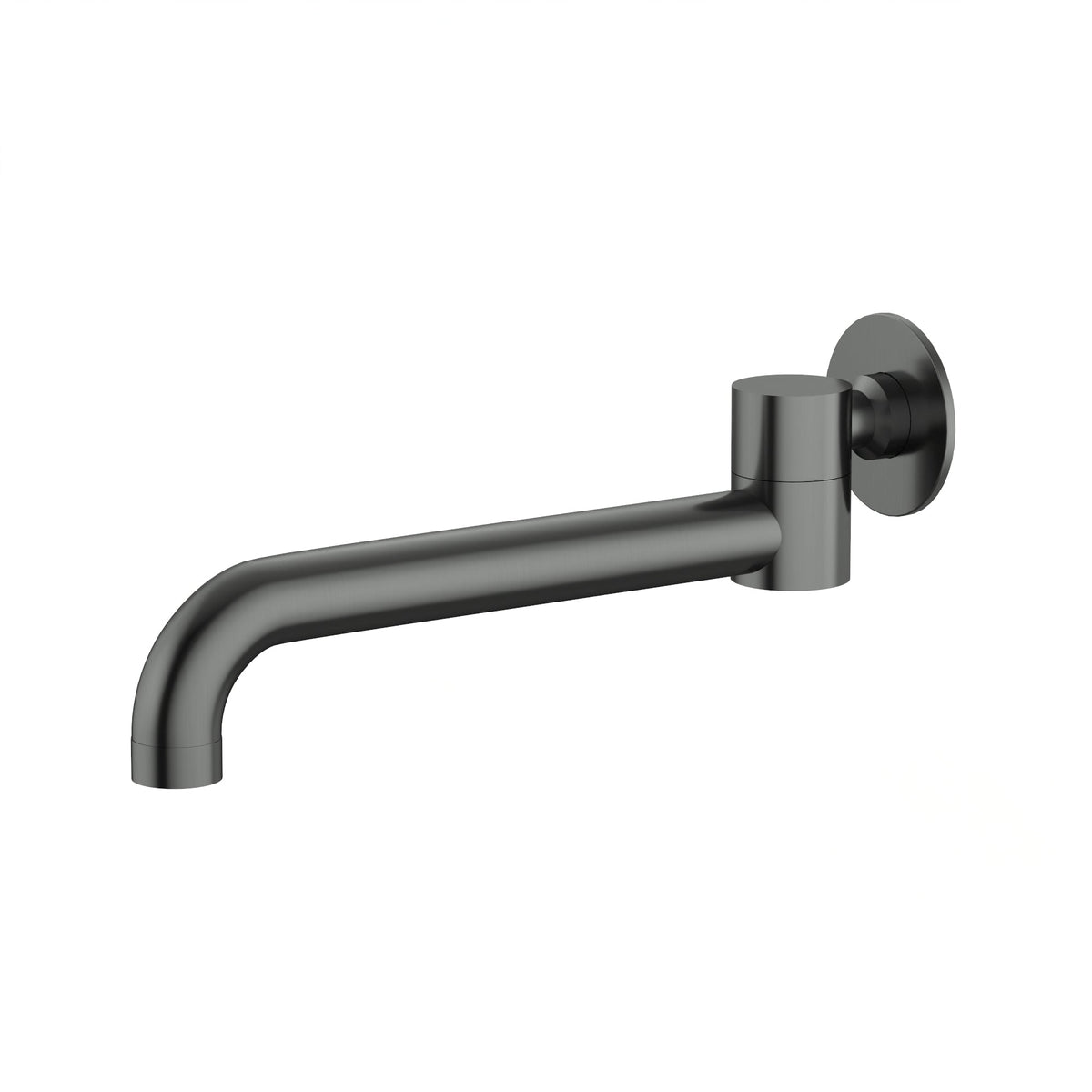

| Gun Metal |
MX8680GM |

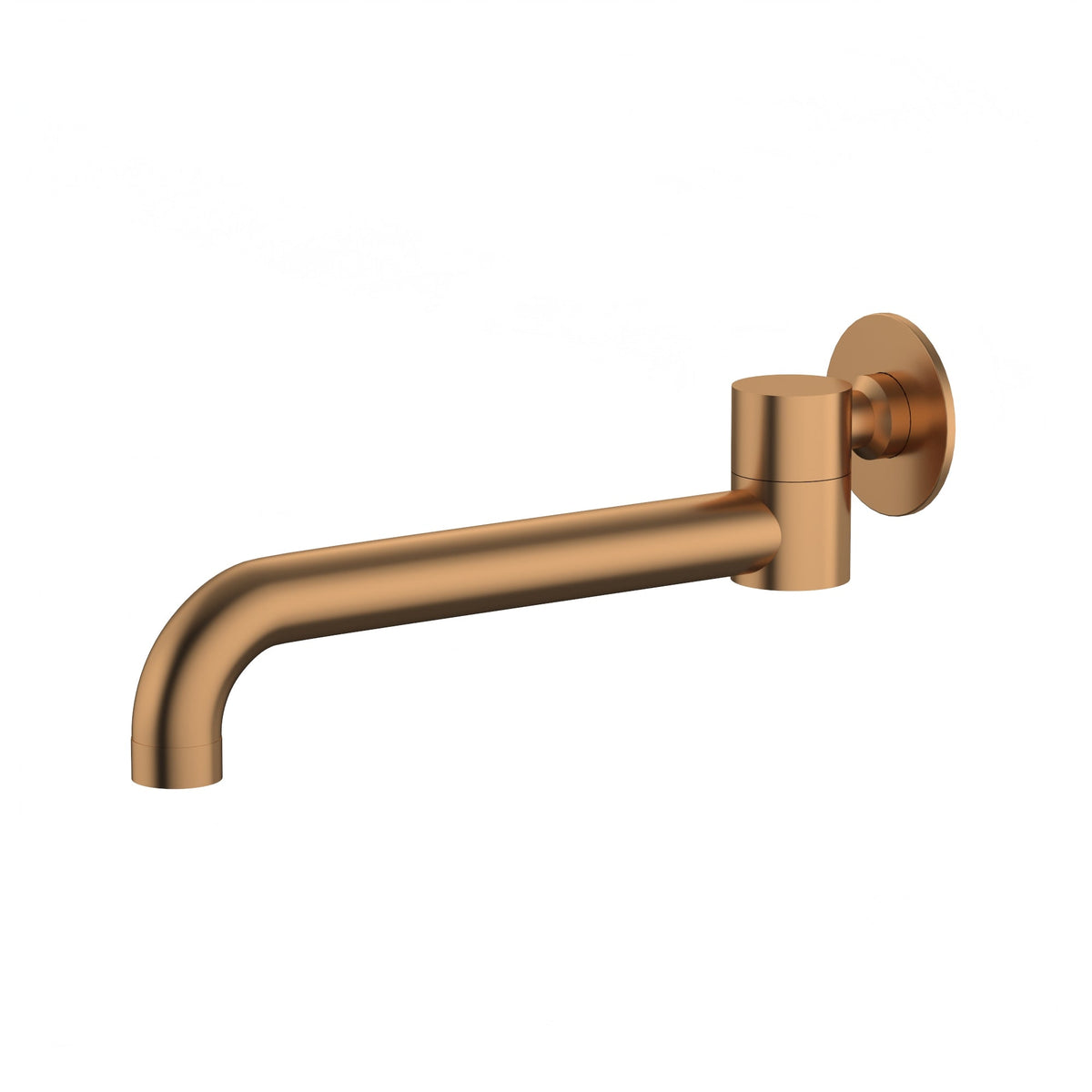

| Brushed Copper |
MX8680BC |
Frequently Asked Questions
Can the Amoza MX8680 be used for both a bath and a basin?
Yes. Amoza specifies the MX8680 for wall basin or bath applications. Use the supplied 6L/min aerator for a basin or the additional non-restricted aerator for bath use. Have your plumber confirm suitability for your installation.
Does the MX8680 spout swivel?
Yes. The arm swivels so the outlet can be repositioned. Check the available clearance in your bathroom before installation.
How far does the spout project from the wall?

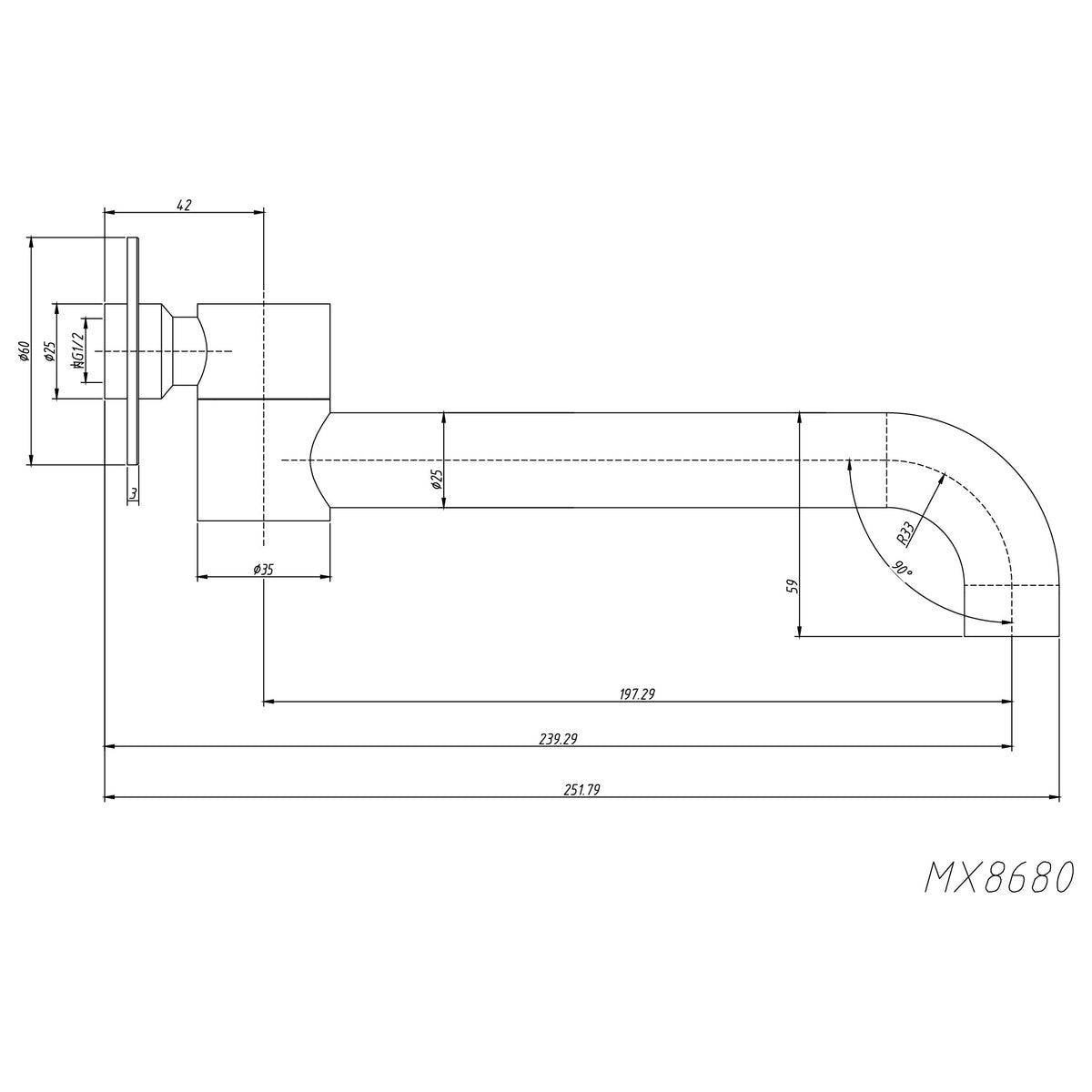

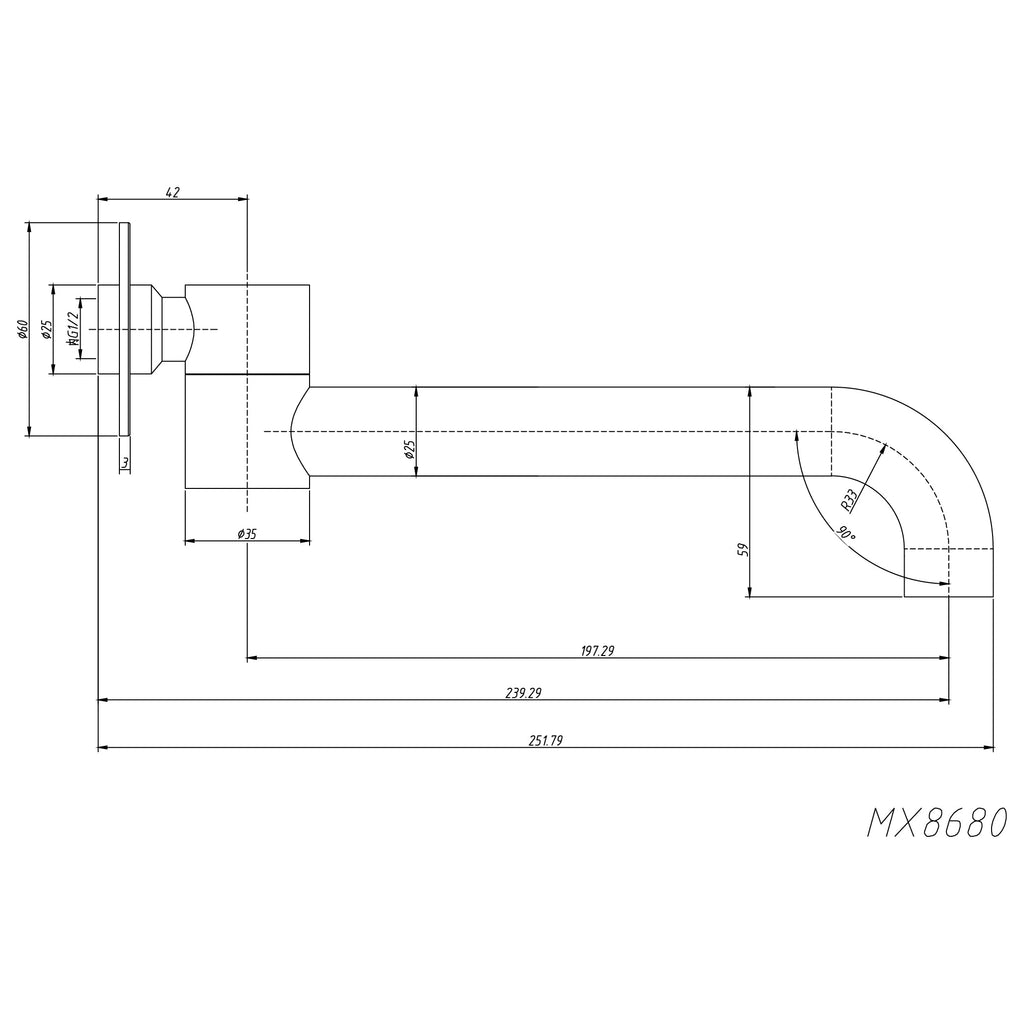

The manufacturer's drawing shows 239.29mm from the wall reference to the outlet centre and 251.79mm overall. Refer to the dimension drawing and confirm the finished wall position with your plumber.
Which finishes are available?
Choose Chrome, Matt Black, Brushed Stainless Steel, Brushed Gold, Gun Metal or Brushed Copper. Select a colour above to view its product image and price.
How is the water flow controlled?
The MX8680 is a spout rather than a mixer. It requires separate compatible water controls. Browse our tapware collection for coordinating options.
