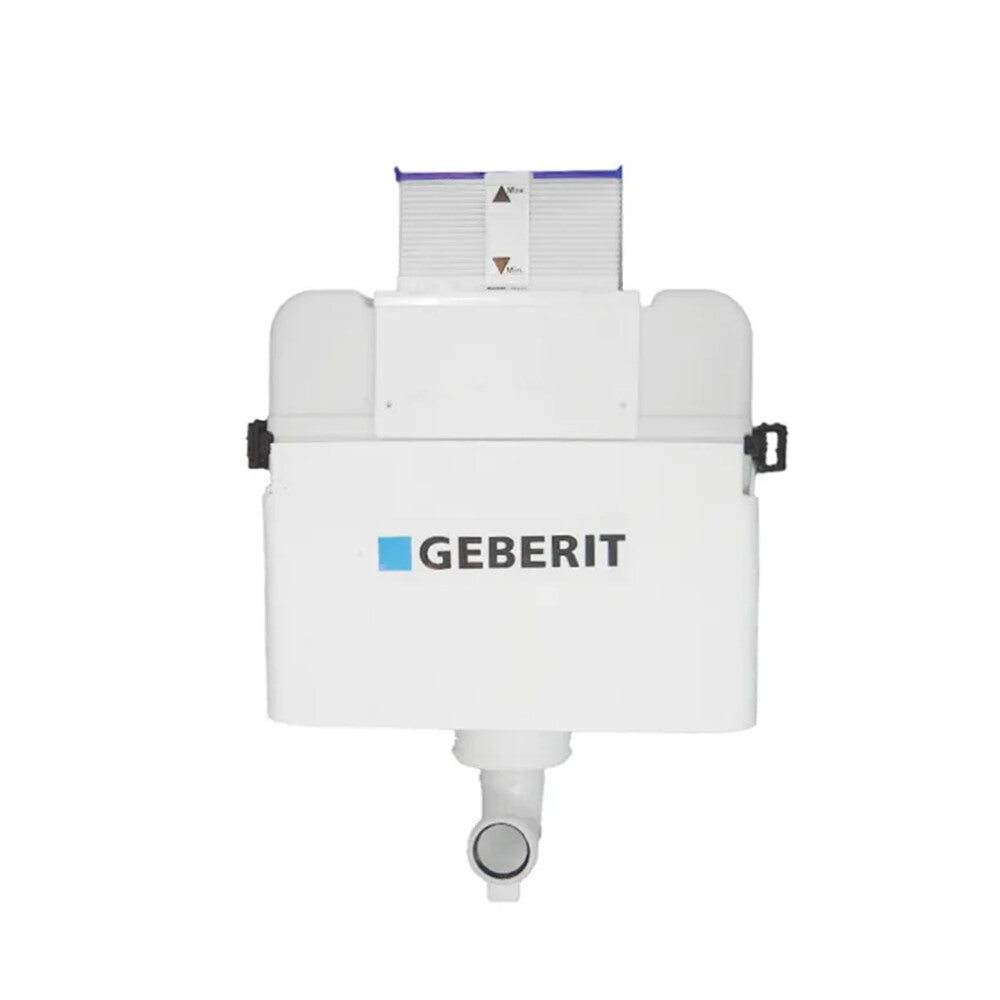

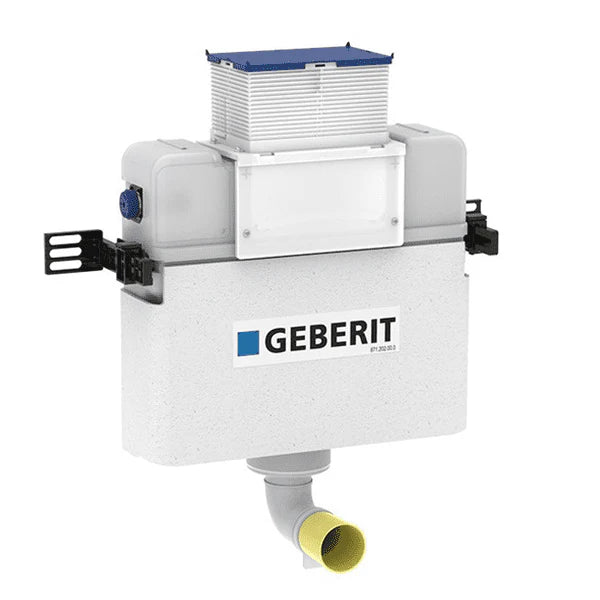

Geberit Kappa Concealed Cistern 4.5 / 3L Dual Flush Low Rise/Low height/Low Level/Mid Level In-wall Cistern For Wall Faced Pan

Geberit Kappa Concealed Cistern 4.5 / 3L Dual Flush Low Rise/Low height/Low Level/Mid Level In-wall Cistern For Wall Faced Pan

Engineered in Switzerland and trusted globally, the Geberit Kappa concealed cistern is a space-saving, efficient flushing system ideal for wall-faced toilet installations. Designed for installation in 90mm stud walls, the Kappa delivers both performance and elegance, making it a reliable choice for modern bathrooms.

Key Features

• Flush Volume: 4.5L full / 3L half flush (adjustable)

• Wall Stud Requirement: Slimline design for 90mm cavity wall

• Material: High-density polyethylene tank (leak-proof, seamless construction)

• Flush Plate Compatibility: Works exclusively with Kappa series dual-flush buttons

• Access: Front access via flush plate for maintenance

• Inlet Type: Top inlet with integrated angle stop valve

• Trap Compatibility: Compatible with both P-trap and S-trap pans

• Pre-mounted Frame System (when used with Geberit frames)

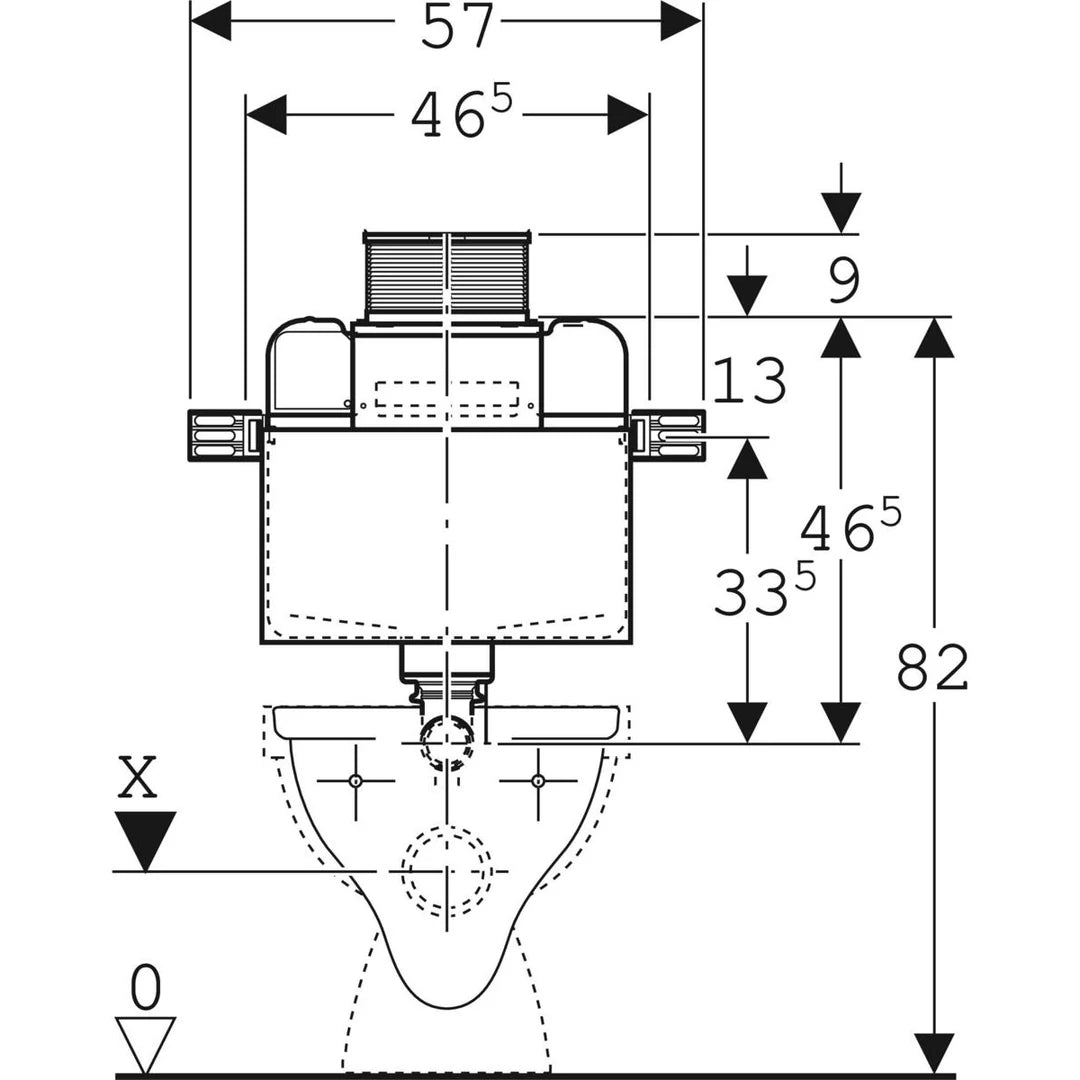

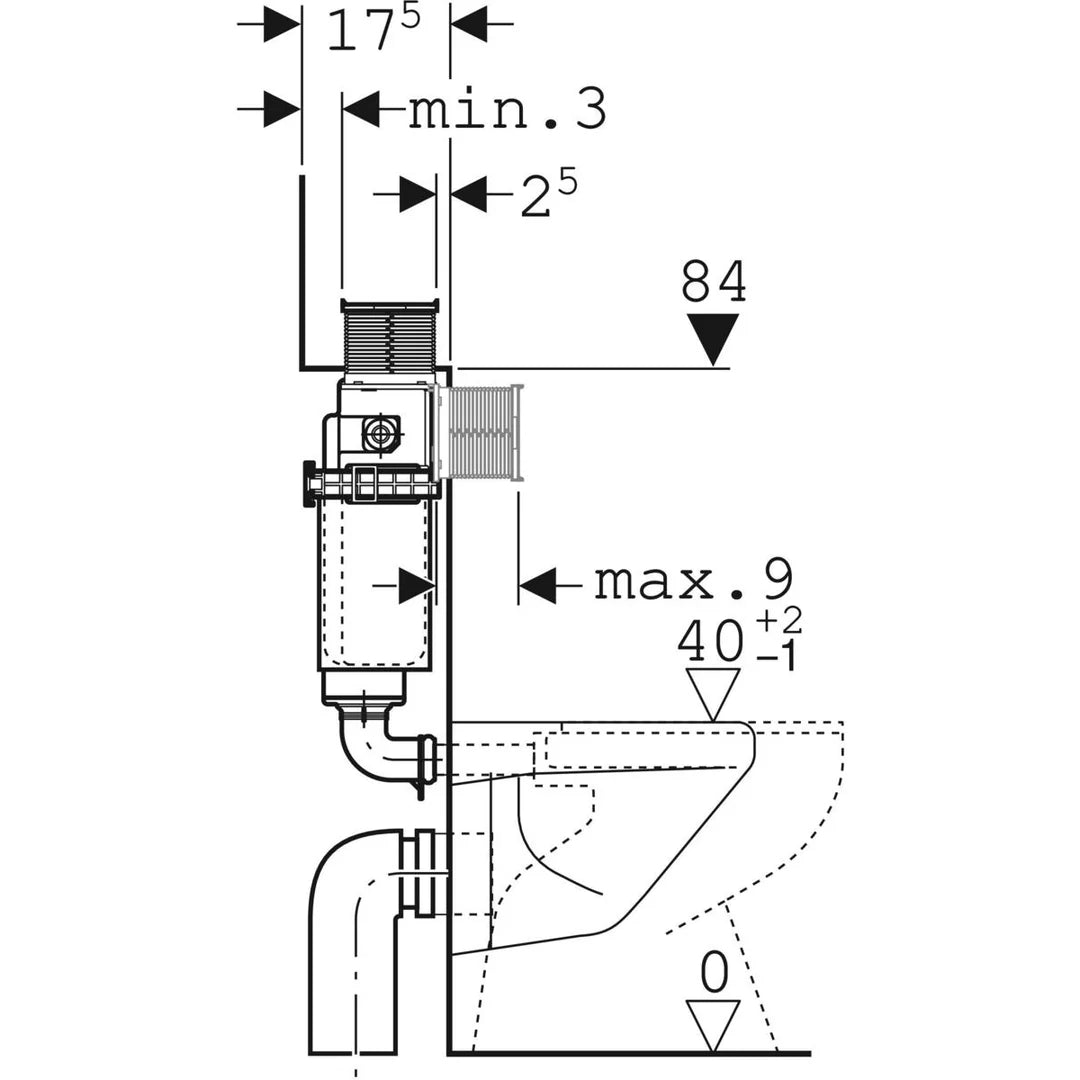

Dimensions

• Width: 440mm

• Height: 820mm

• Depth: 80mm (tank)

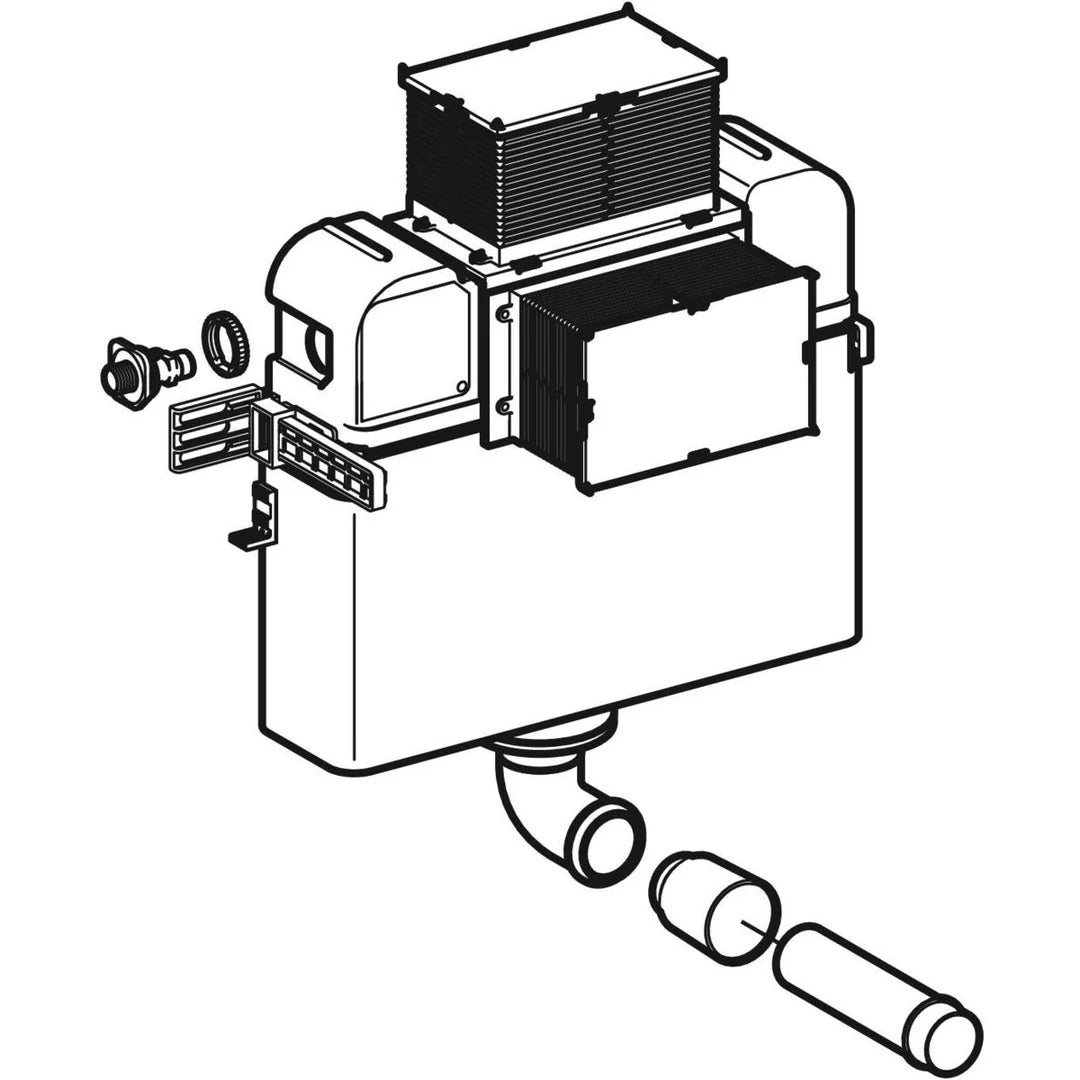

What’s Included

• Geberit Kappa In-Wall Cistern Tank

• Fixing materials

• Installation and service box

• Flush pipe and bend

Flush Plate Options
Compatible only with Geberit Kappa Series Flush Plates (not included, sold separately)

Warranty & Certifications

• 15-Year Product Warranty on Cistern Body

• 25-Year Spare Parts Availability

• WELS 4-Star Rated

  • Average Flush: 3.3L

  • Full Flush: 4.5L

  • Half Flush: 3L

  • WELS Registration No: L05002
