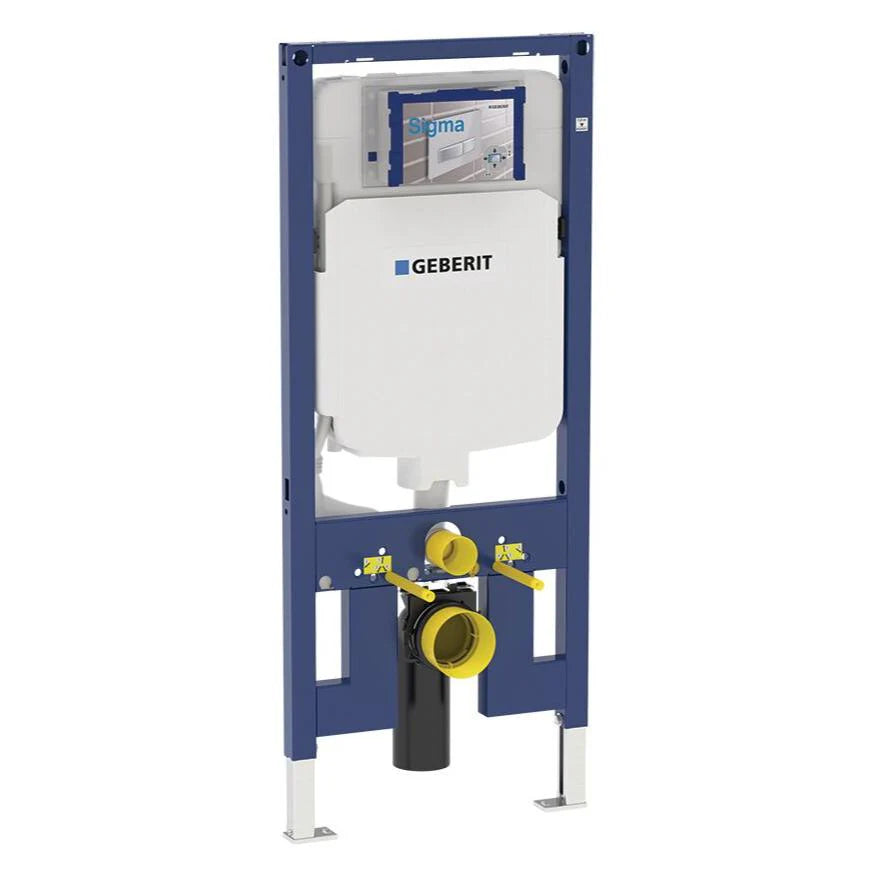

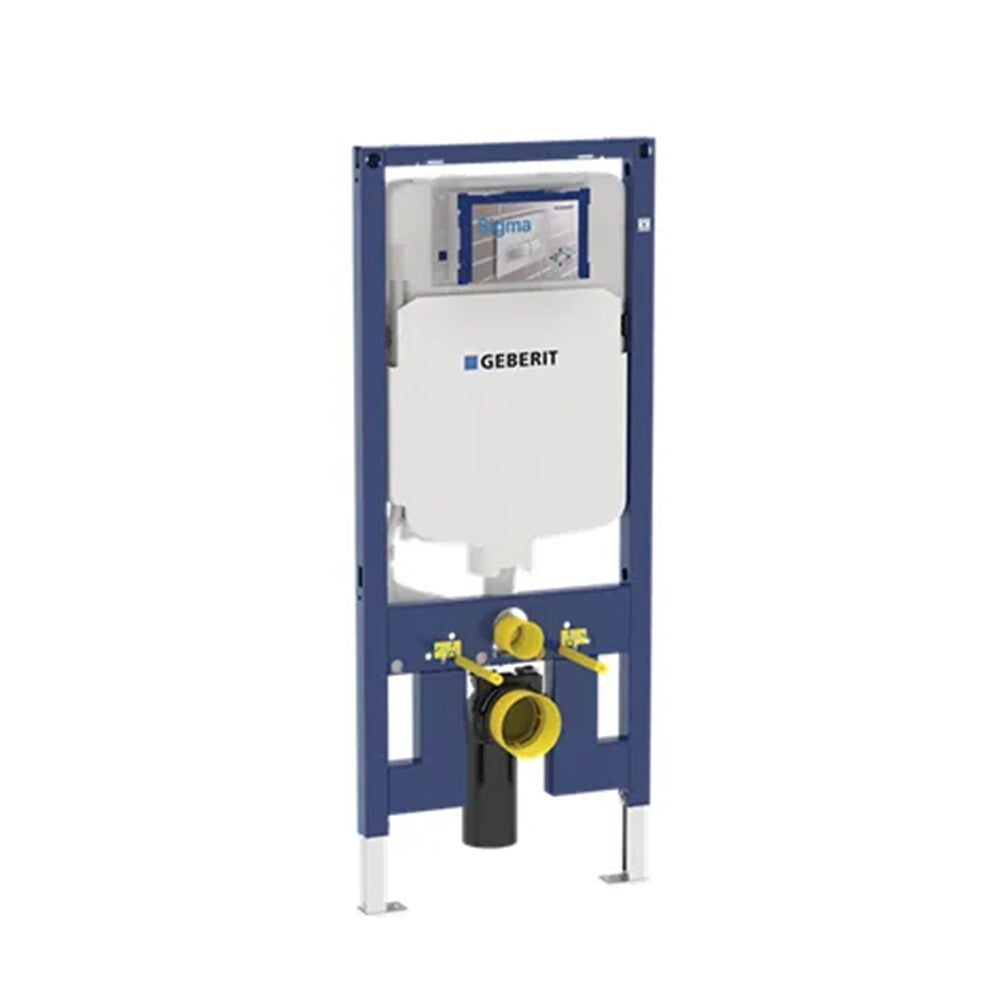

Geberit Sigma8 Duofix In-Wall Concealed Cistern with Frame | 4.5/3L Dual Flush | 90mm Stud Compatible For Wall Hung Pan
Engineered in Switzerland, the Geberit Sigma8 (MA8PPA) Duofix system delivers space-saving, concealed elegance for wall-hung and floor-mounted toilets. Designed to fit 90mm stud walls, it's the ideal solution for both renovations and new builds, offering long-term durability and modern performance.
Key Features
- Model: Sigma8 MA8PPA
- Frame Type: Duofix Steel Frame (powder-coated, pre-assembled)
- Mounting: Suitable for wall-faced pans
- Wall Compatibility: Installs into 90mm stud walls
- Cistern Type: Concealed HDPE tank with leak-proof welding
- Flush Volume: Dual flush 4.5L (full) / 3L (half), adjustable
- Inlet: Top inlet with integrated stop valve
- Flush Actuation: Compatible with Geberit Sigma series flush plates
- Access: Easy access via removable flush plate panel
- Quiet filling valve for reduced noise

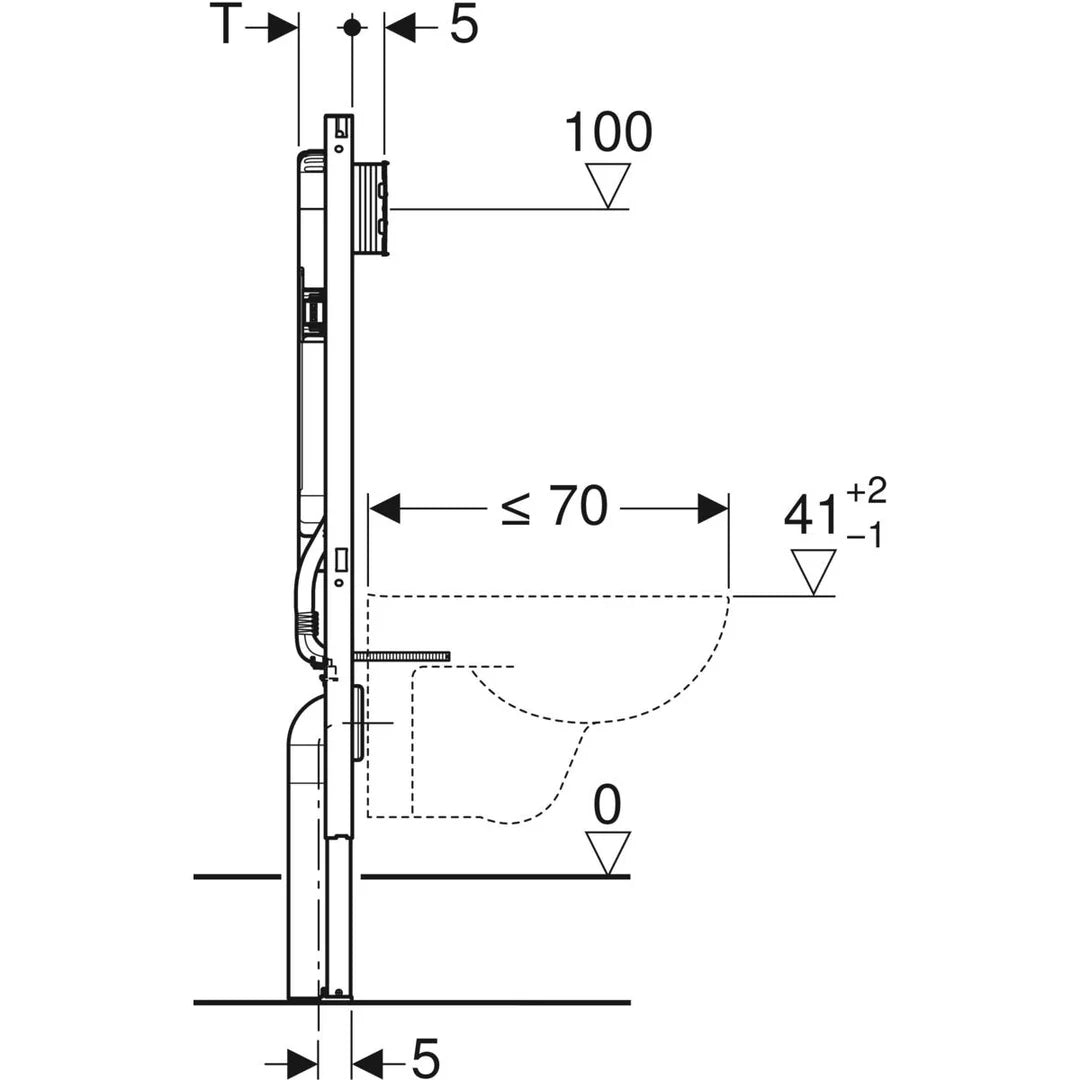

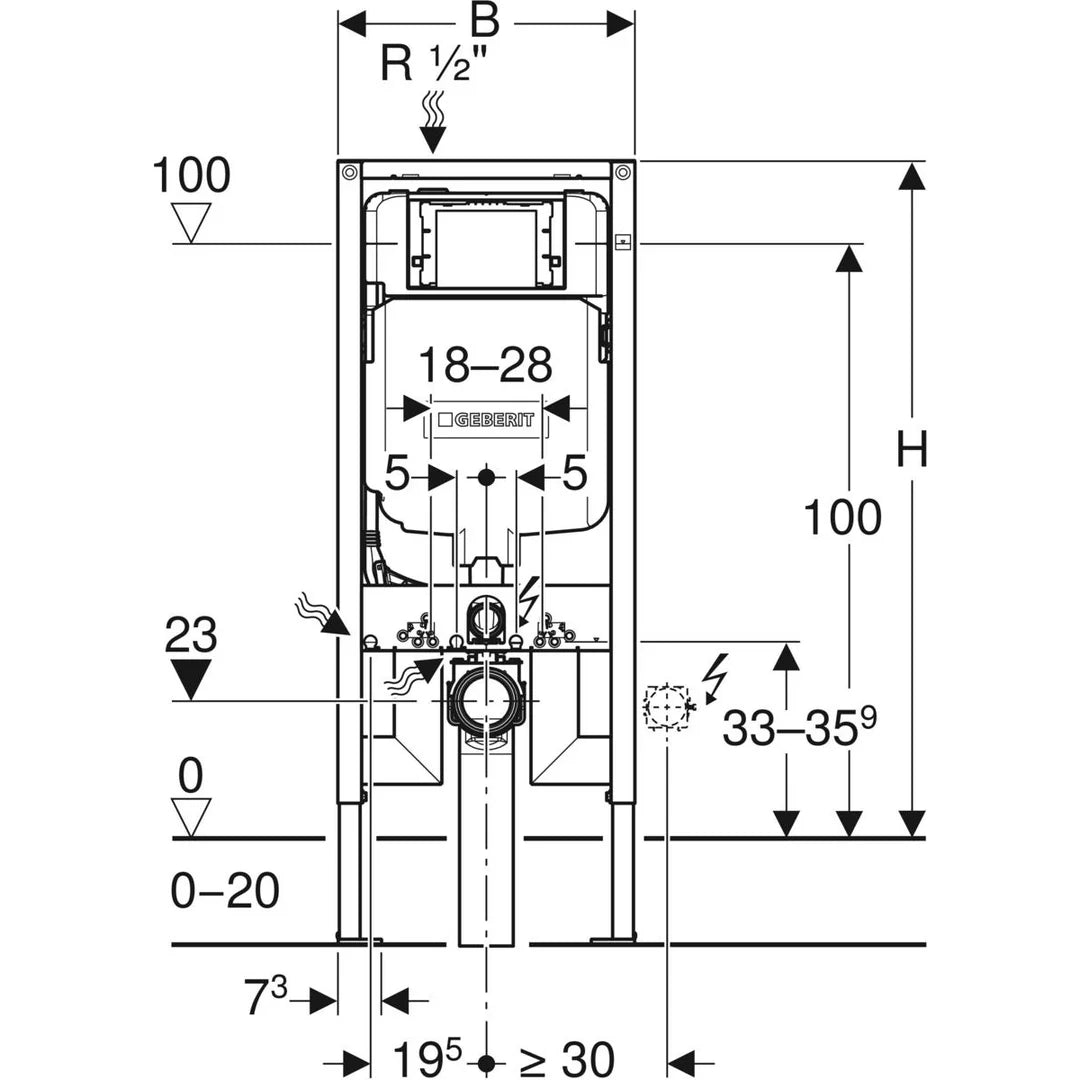

Dimensions
- Height: 1120 mm
- Width: 500 mm
- Depth: 90 mm
What’s Included
- Sigma8 concealed cistern
- Duofix steel support frame
- Inlet and flush pipe sets
- Mounting hardware
- Protective flush plate insert
- Installation instructions
Flush Plate Compatibility
- Compatible with all Geberit Sigma series flush plates (sold separately)
Warranty & Certifications
- 15-Year Product Replacement Warranty
- 25-Year Spare Parts Guarantee
- WELS 4-Star Rated
- Full Flush: 4.5L
- Half Flush: 3L
- Average Flush: 3.3L
- WELS Registration Number: L05002
