The Berlin66 Wall-Hung Pan delivers sleek European styling and Mercio’s Quiet Flush technology for a refined look and powerful performance. This space-saving wall-hung design conceals pipework for a clean, floating finish — perfect for modern bathrooms, apartments, and minimalist renovations.
Key Features
Wall-Hung Pan: Creates a modern floating look and makes floor cleaning easy.
Mercio Quiet Flush: Reliable, powerful flush that minimises noise and saves water.
Flexible Cistern Options: Compatible with Geberit Duofix Sigma 8, Kappa Under Counter, R&T Framed In-Wall Cisterns, or install as toilet pan only.
Premium Vitreous China: Made from the highest quality ceramic with a smooth gloss white finish.
Compact European Style: Perfect for space-saving installations and contemporary bathrooms.
Specifications
Specification
Details
Model
BEWH
Type
Wall-Hung Pan
Series
Berlin
Flushing System
Mercio Quiet Flush
Material
Highest Quality Vitreous China
Finish / Colour
Gloss White

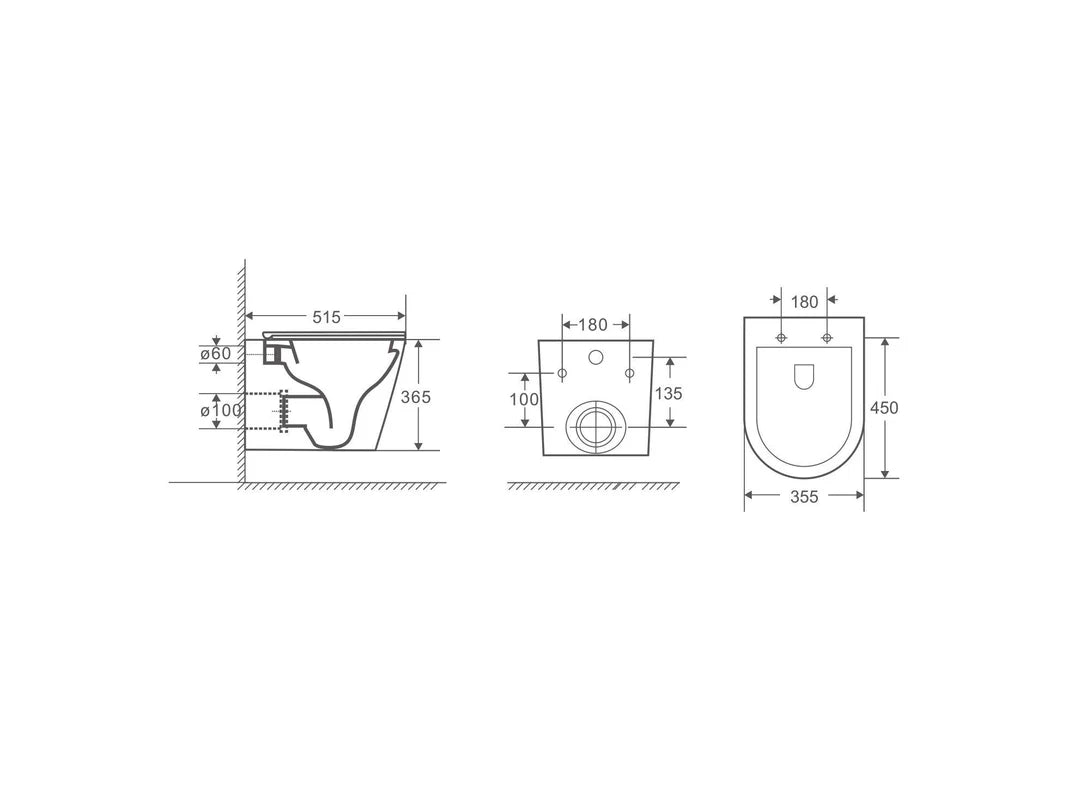

Dimensions (mm)
Length: 515 mm Width: 355 mm Height: 365 mm Pan Height: 365 mm
In-Wall Cistern Options
Toilet pan only Geberit Duofix Sigma 8 In-Wall Cistern Geberit Duofix Kappa Under Counter In-Wall Cistern R&T Framed In-Wall Cistern
Trap Types
P-Trap 180mm (Original, SKU: P180)
Water Inlet
Back Entry Inlet
Warranty
1 Year Parts & Labour 20 Years Product Replacement
WELS Info
WELS Licence No.: 1743 WELS Rating: 4 Star, 4.5L per full flush, 3L per half flush
Installation
The Berlin66 Wall-Hung Pan is designed for installation with a compatible in-wall cistern frame to achieve a modern floating look. Always use a licensed plumber to ensure correct alignment, water efficiency, and compliance with local plumbing standards.
