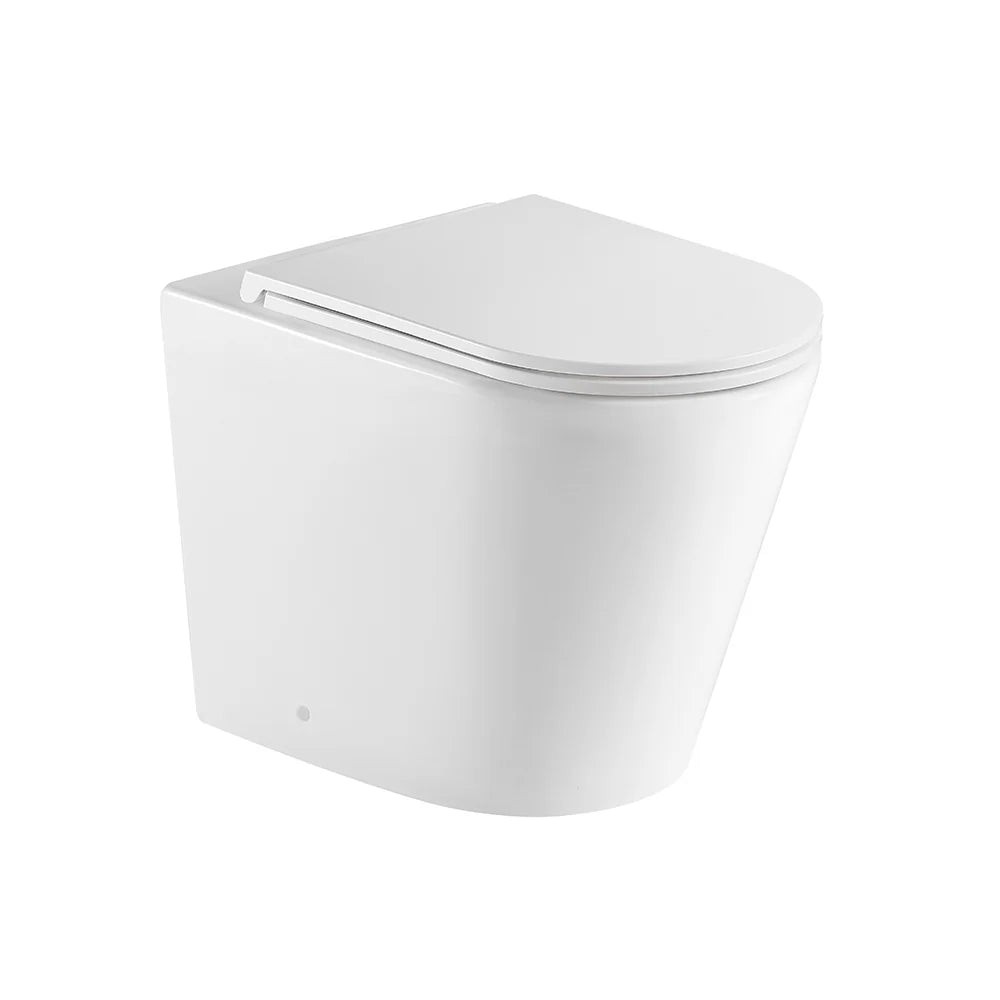

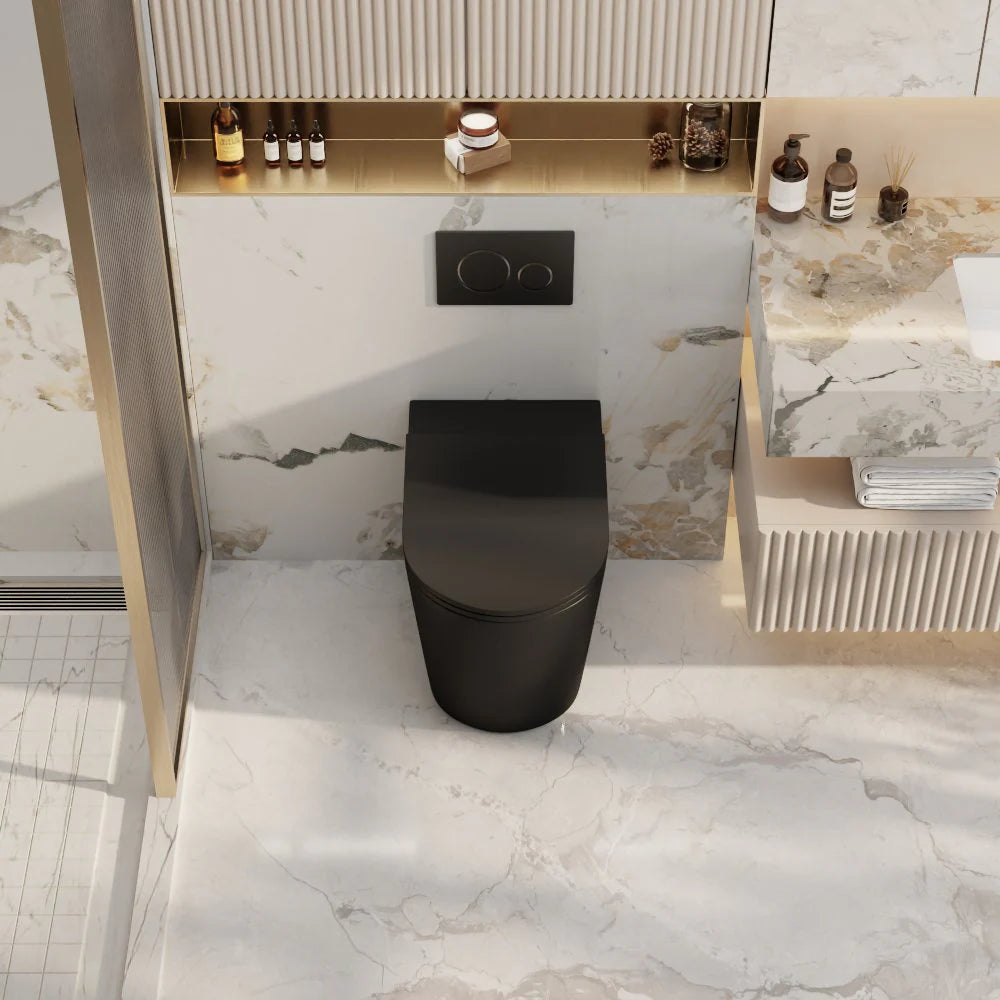

Mercio Berlin99 Wall-Faced Floor Pan — Compact, Modern, Quiet Flush
The Berlin99 Wall-Faced Floor Pan combines timeless design with Mercio’s Quiet Flush technology for efficient performance and a sleek, concealed look.
Its compact, wall-faced floor mount style makes it perfect for contemporary bathrooms, while multiple in-wall cistern options provide flexible installation for a seamless finish.
Key Features
-
Wall-Faced Floor Pan: Neatly conceals pipework for a smooth, minimalistic look.
-
Mercio Quiet Flush: Delivers powerful, water-saving flushing performance with minimal noise.
-
Flexible Cistern Options: Compatible with Geberit Sigma 8, Kappa Under Counter, R&T In-Wall Cisterns or toilet pan only.
-
Flexible Trap Options: Standard S-Trap with optional S-Trap and P-Trap configurations for versatile installation.
-

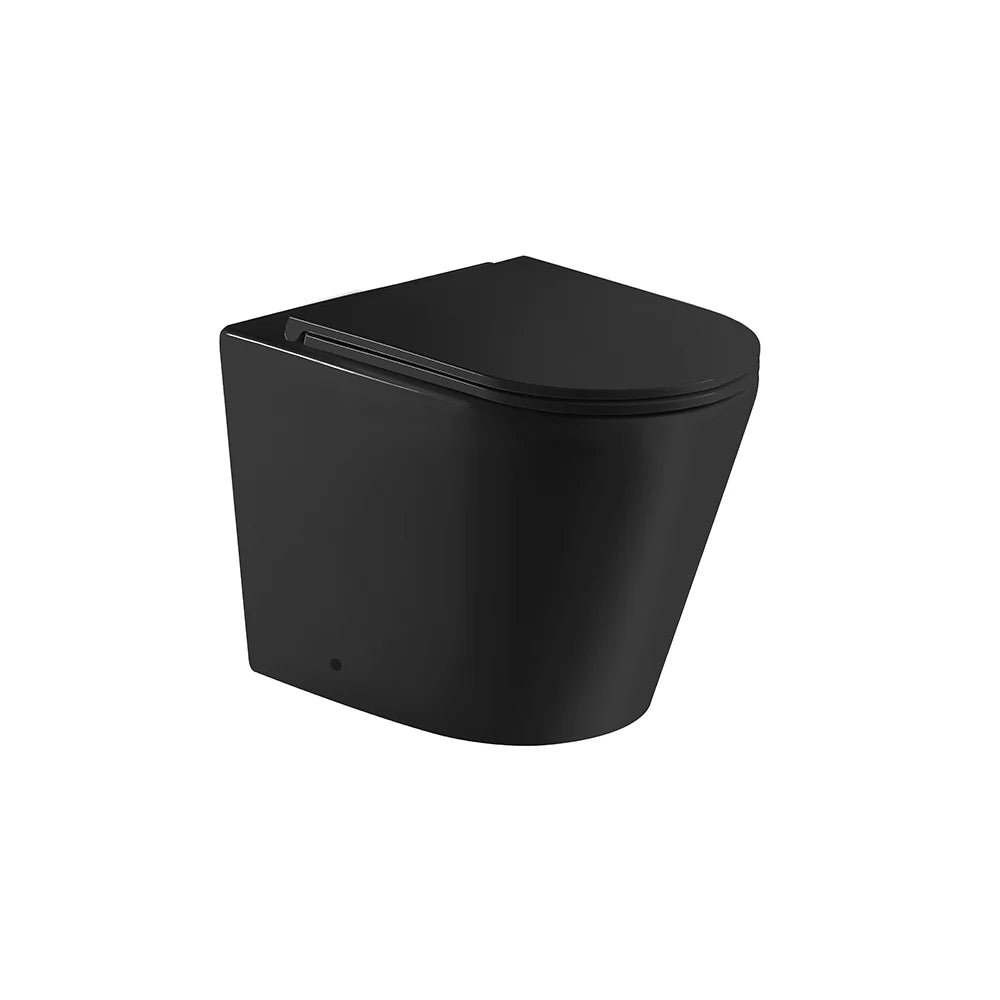

Premium Vitreous China: Made from the highest quality ceramic with multiple finish options — Gloss White, Matt White, or Matt Black.
-
Compact Size: Ideal for modern renovations, apartments, and powder rooms.
Specifications
| Specification |
Details |
| Model |
BEWFP |
| Type |
Wall-Faced Floor Pan |
| Series |
Berlin |
| Flushing System |
Mercio Quiet Flush |
| Material |
Highest Quality Vitreous China |
| Finish / Colour |
Gloss White / Matt White / Matt Black |

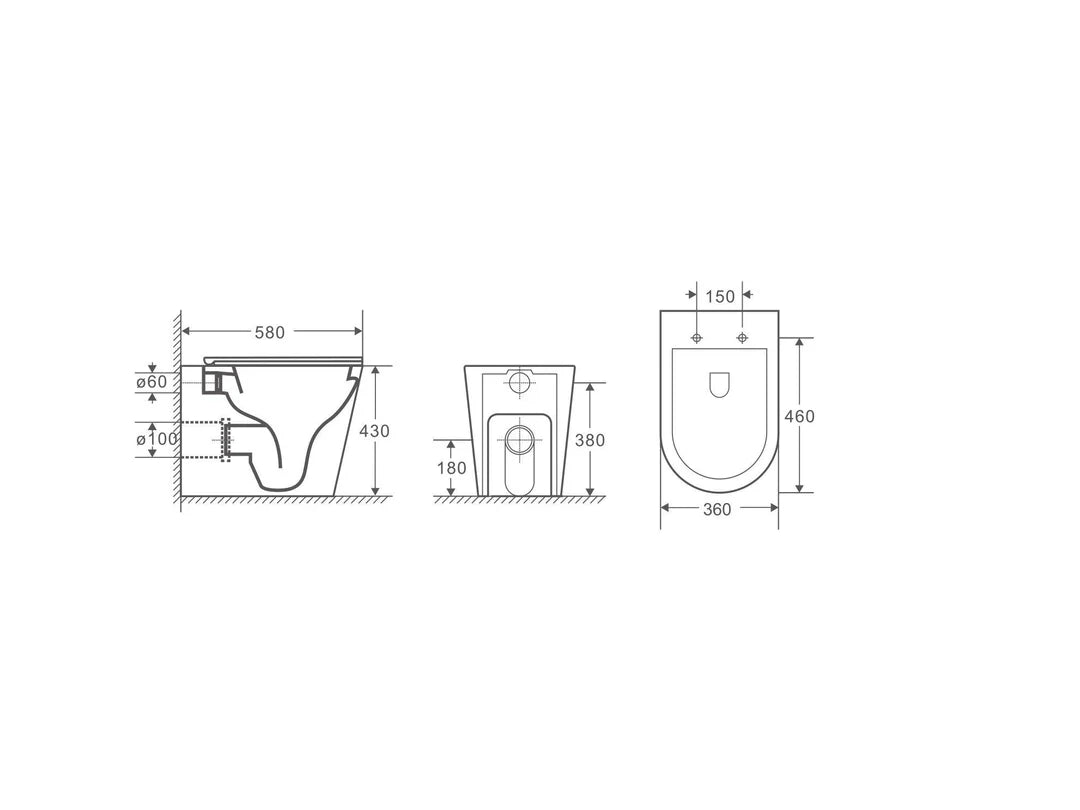

| Dimensions (mm) |
Length: 580 mm
Width: 360 mm
Height: 430 mm
Pan Height: 430 mm |
| In-Wall Cistern Options |
Toilet pan only
Geberit Sigma 8 In-Wall Cistern
Geberit Kappa Under Counter In-Wall Cistern
R&T In-Wall Cistern |
| Trap Types |
S-Trap 100–120mm (Original, SKU: VB70)
S-Trap 50–80mm (Optional, SKU: VB60)
P-Trap 180mm (Optional, SKU: P180) |
| Water Inlet |
Back Entry Inlet |
| Warranty |
1 Year Parts & Labour
20 Years Product Replacement |
WELS Info
WELS Licence No.: 1743
WELS Rating: 4 Star, 4.5L per full flush, 3L per half flush
Installation
The Berlin99 Wall-Faced Floor Pan is designed for easy installation with flexible trap and compatible in-wall cistern options.
Always use a licensed plumber to ensure correct fitment, water efficiency and a seamless finish.
