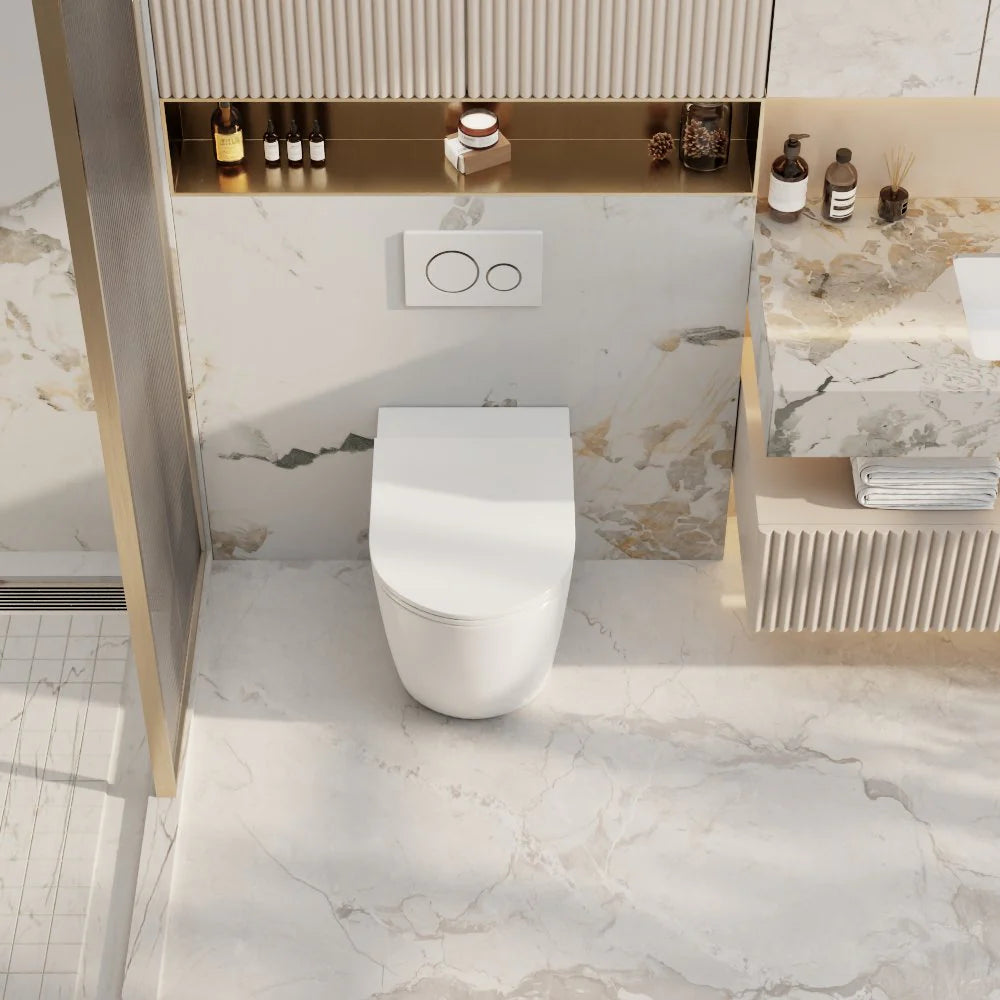

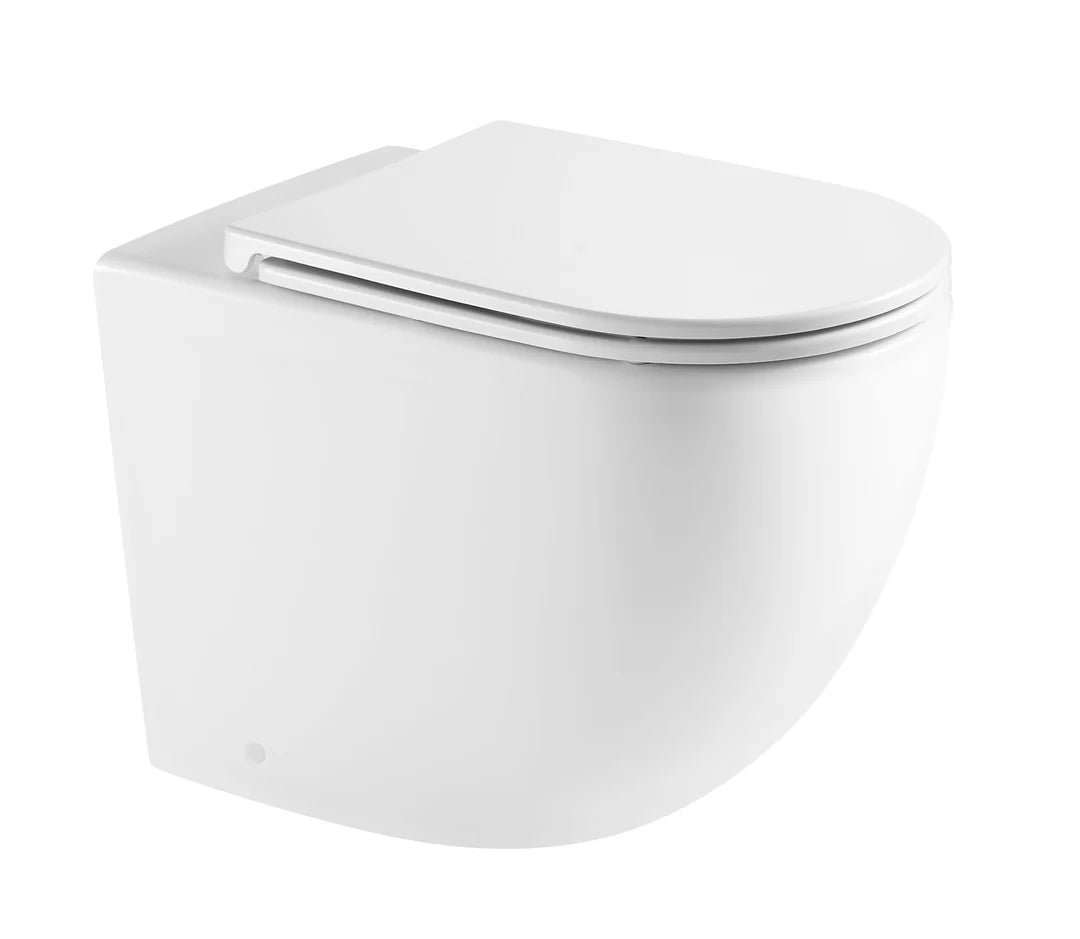

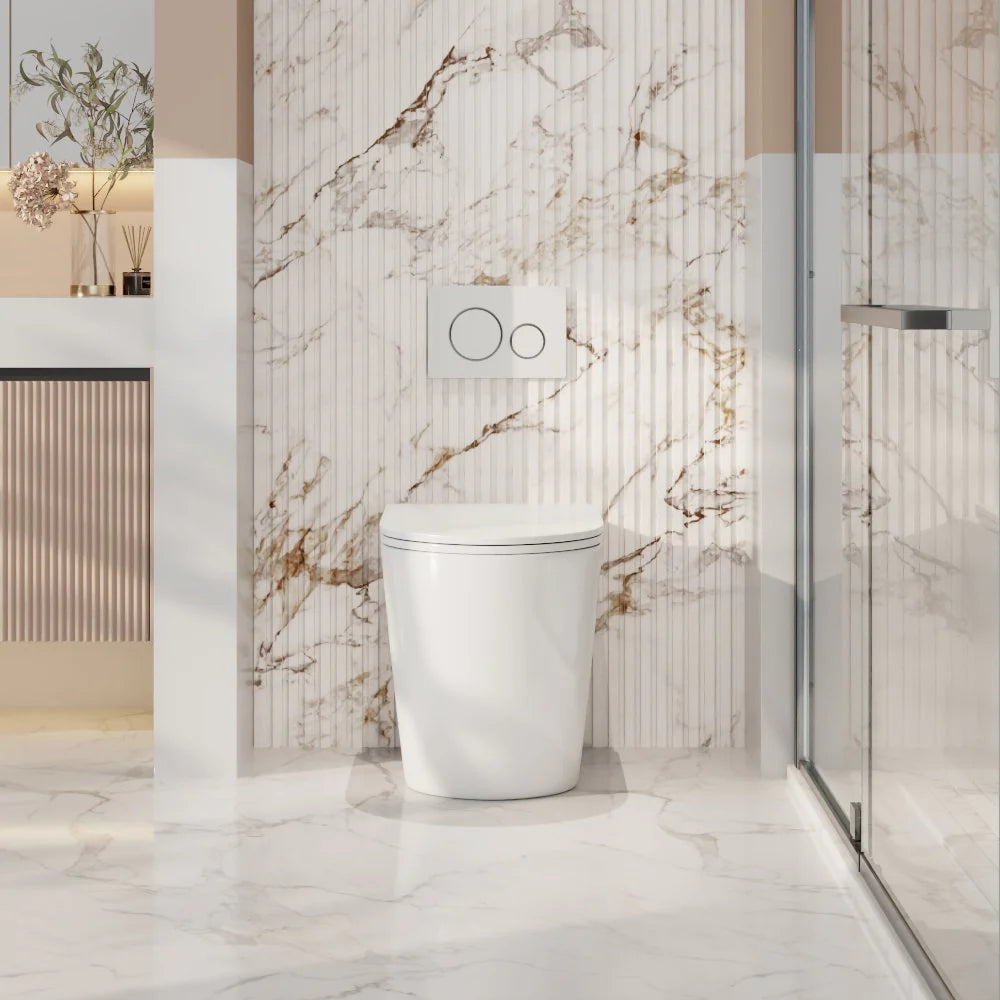

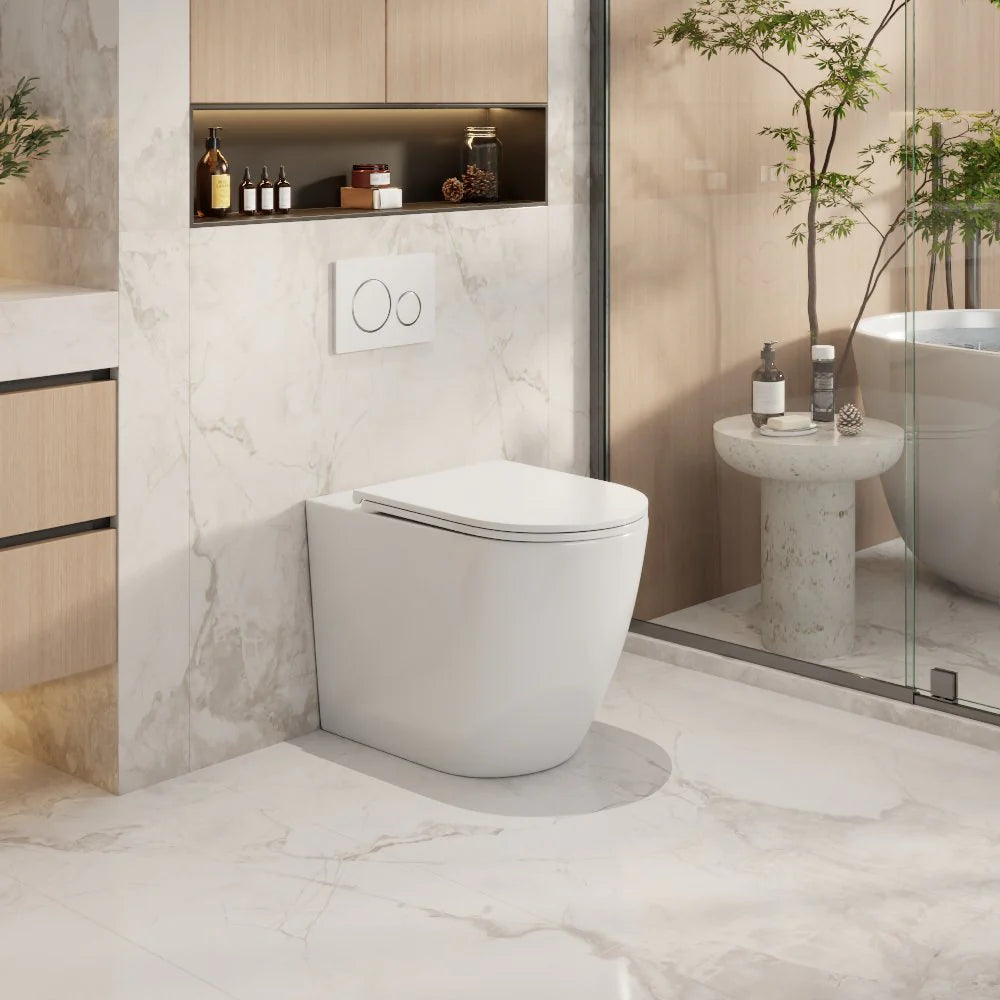

Mercio Raul99 Wall-Faced Floor Pan — Compact, Rimless, Sleek
The Raul99 Wall-Faced Floor Pan combines contemporary styling with an advanced rimless flush design for superior hygiene and easy cleaning.
Its compact wall-faced floor pan style conceals pipework for a tidy, streamlined look — perfect for modern bathrooms, powder rooms, and tight spaces.
Key Features
-
Wall-Faced Floor Pan: Conceals pipework for a smooth, minimalist finish.
-
Rimless Flush: Innovative rimless bowl design delivers a powerful, splash-free flush that keeps the bowl cleaner for longer.
-
Flexible Cistern Options: Compatible with Geberit Sigma 8, Kappa Under Counter, R&T In-Wall Cisterns or toilet pan only.
-
Flexible Trap Options: Standard S-Trap with optional S-Trap and P-Trap configurations for versatile installation.
-
Premium Vitreous China: Made from the highest quality ceramic in a classic gloss white finish.
-
Compact Size: Ideal for small bathrooms and space-saving renovations.
Specifications
| Specification |
Details |
| Model |
RAWFP |
| Type |
Wall-Faced Floor Pan |
| Series |
Raul |
| Flushing System |
Rimless Flush |
| Material |
Highest Quality Vitreous China |
| Finish / Colour |
Gloss White | Matt White |

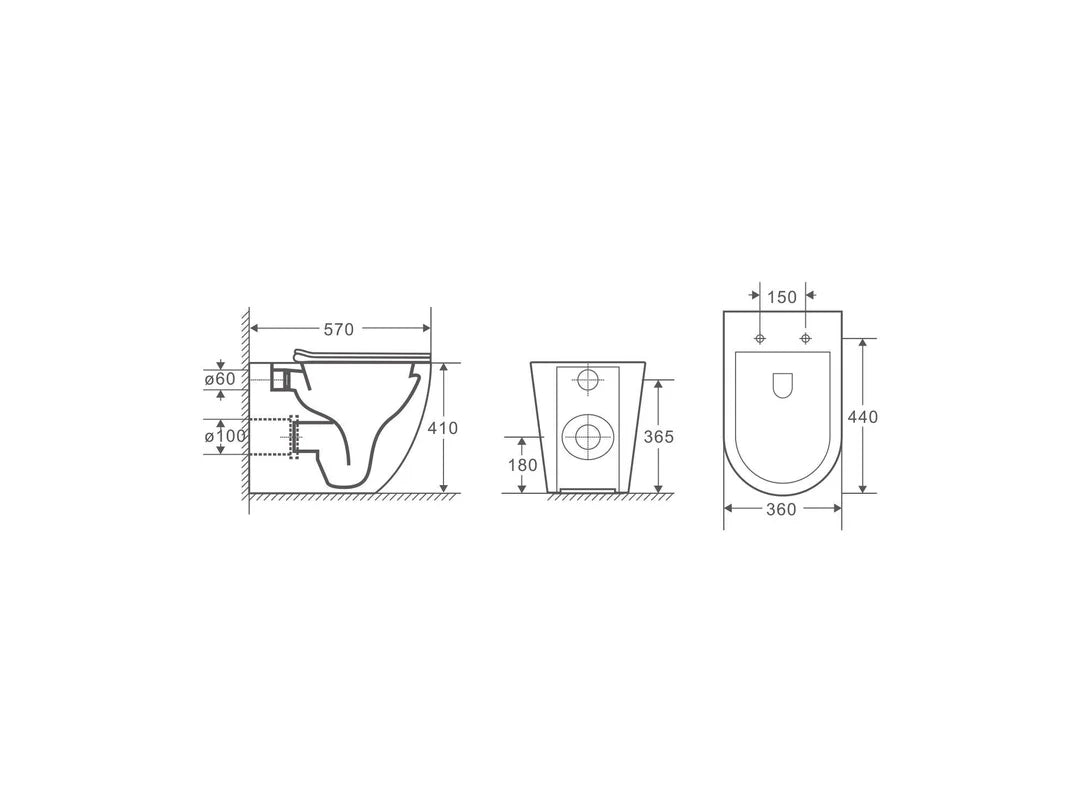

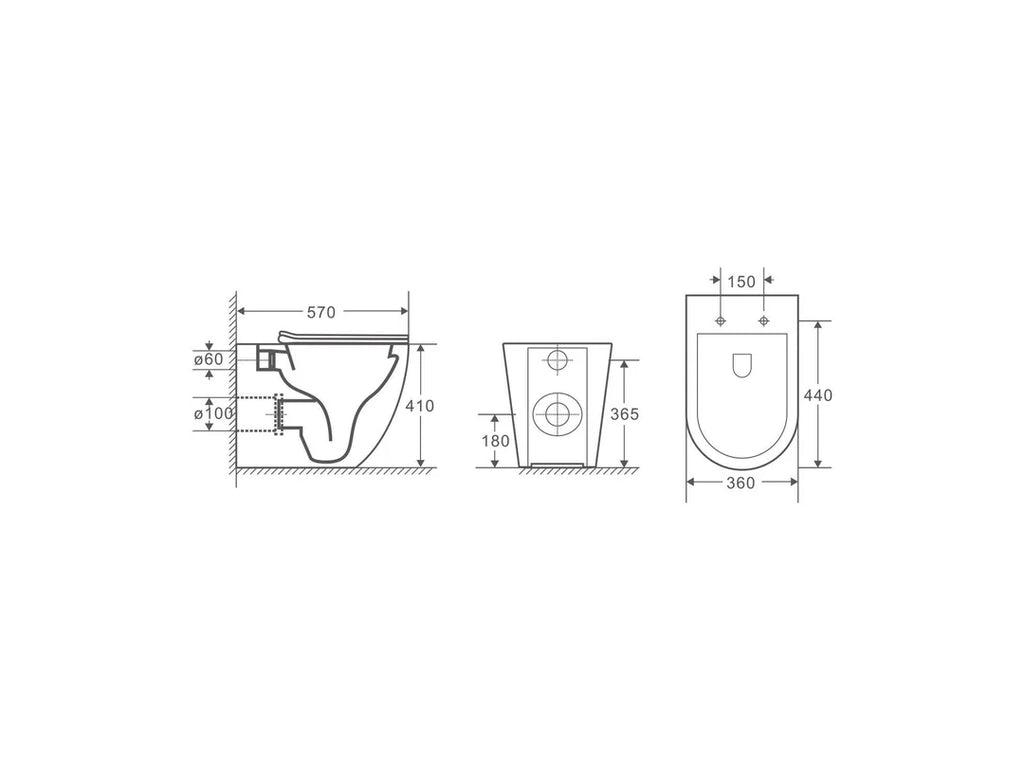

| Dimensions (mm) |
Length: 570 mm
Width: 360 mm
Height: 410 mm
Pan Height: 410 mm |
| In-Wall Cistern Options |
Toilet pan only
Geberit Sigma 8 In-Wall Cistern
Geberit Kappa Under Counter In-Wall Cistern
R&T In-Wall Cistern |
| Trap Types |
S-Trap 100–145mm (Original, SKU: VB70)
S-Trap 50–80mm (Optional, SKU: VB60)
P-Trap 180mm (Optional, SKU: P180) |
| Water Inlet |
Back Entry Inlet |
| Warranty |
1 Year Parts & Labour
20 Years Product Replacement |
Installation
The Raul99 Wall-Faced Floor Pan is designed for straightforward installation with flexible trap configurations and multiple compatible in-wall cisterns.
Always use a licensed plumber to ensure correct fitment, water efficiency, and a seamless finish.
What’s Included
