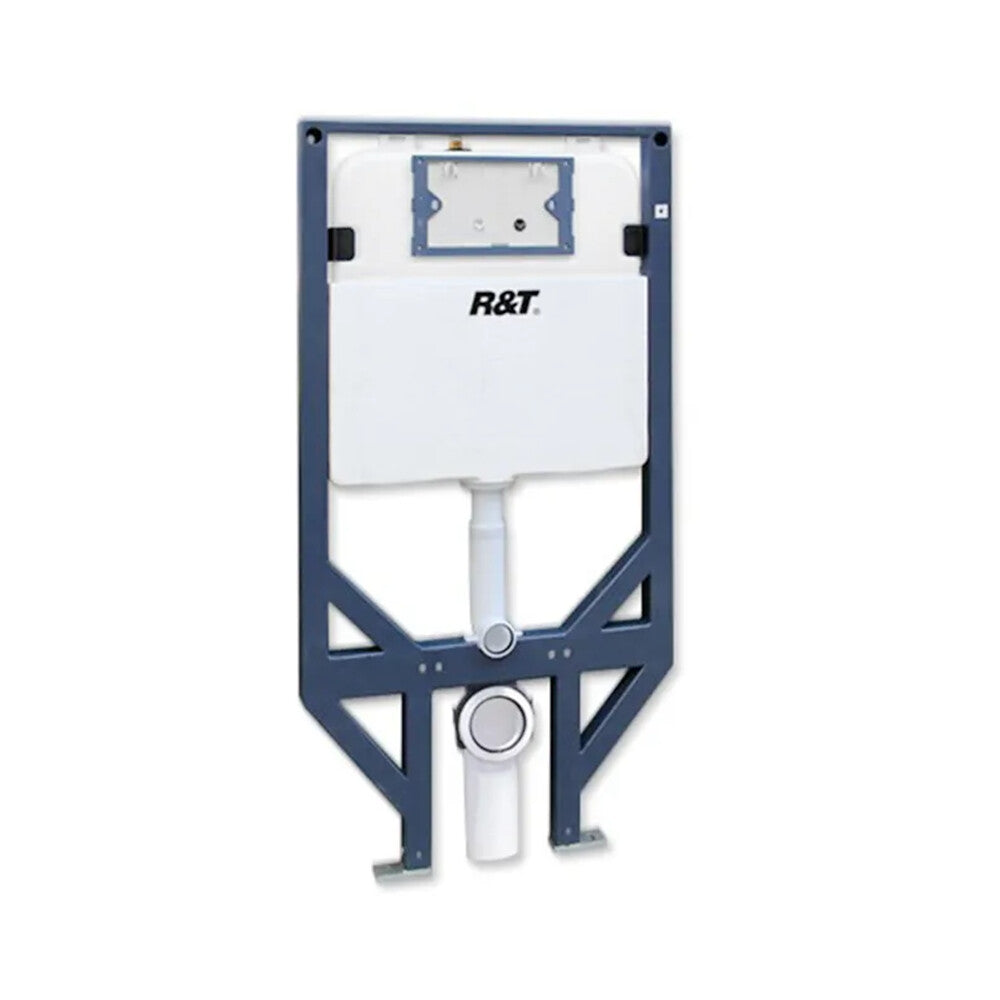

R&T Alpha Cistern Framed Standard In-wall Cistern For Wall Hung Pan

R&T Alpha Cistern Framed Standard In-wall Cistern For Wall Hung Pan

Ideal for modern bathroom designs, the R&T 80mm Concealed In-Wall Cistern provides a slim and efficient solution for space-saving toilet installations. Compatible with most wall-hung pans and flush plates, this cistern is perfect for both new builds and renovations.

Key Features

• Brand: R&T

• Cistern Type: Concealed in-wall cistern with frame

• Flush Type: Dual Flush 4.5/3L

• Compatibility: Suitable for wall-hung toilet pans

• Wall Stud Compatibility: Designed for 90mm wall cavities

• Material: High-quality HDPE cistern with steel frame

• Frame Finish: Powder-coated, anti-rust treatment

• Quiet Operation: Low-noise inlet valve

• Water Supply: Top inlet with integrated isolation valve

• Flush Plate: Compatible with standard flush plate buttons (sold separately)

Dimensions

• Depth: 80 mm (slim design)

• Height: 1120 mm

• Width: 500 mm

What’s Included

• Concealed cistern unit

• Pre-assembled steel frame

• Inlet and flush pipe kits

• Installation fittings

• Protection box for flush plate

• Installation instructions

Warranty

• 10-Year Replacement Warranty on cistern body

• 1-Year Warranty on internal parts

WELS:

• Water Efficiency: 4 Star

• Full Flush: 4.5L

• Half Flush: 3L

• Average Flush: 3.3L
